Application Types LC-MS

Part number: 10-9901

Status Discontinued i

Gas types Nitrogen Air

Integrated compressor No

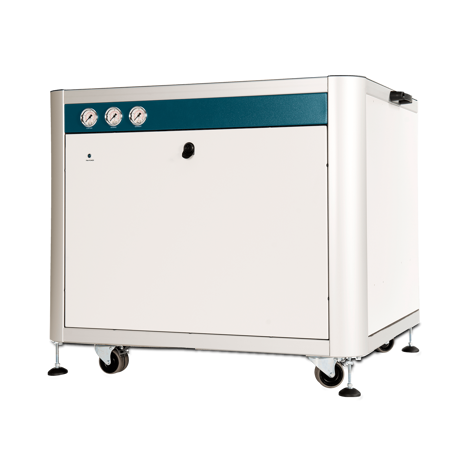

SCIEX Table 1N

The MS table has been designed as an SCIEX exclusive product to house the Triple Quad™, QTRAP™ or IVD MS systems. The MS table comes in a standard and premium form, the premium version including an inbuilt Infinity 1031 , or 1031 Hi-flow for MD instruments, allowing the supply of curtain, source and exhaust gases. Furthermore, the MS Table also comes supplied with an accessible sound proof enclosure for the required vacuum pumps for these applications.

View active replacement

Features

  • Table designed to hold SCIEX Mass Spectrometer
  • Provides gas source for SCIEX instrument
  • Reduced lab footprint
  • Minimal set-up required
  • Sound proofed reducing noise of roughing pumps

Gas

Gas Type: Nitrogen

Max Gas Flow: 19L/min

Max Output Pressure: 65psi/4.5bar


Gas Type: Air

Max Gas Flow: 26L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 25L/min

Max Output Pressure: 60psi/4.1bar

Site & Installation

Min Inlet Pressure: 120 psi

Max Inlet Pressure: 145 psi

Min Air Inlet Flow: 115 L/min

Min Inlet Air Quality: 1.4.1

Start Up Time: 30 mins

Power Consumption: 240 VA

Voltage: 110-240 V

Frequency: 50/60 Hz

Current: 1 A

Heat output: 818 BTU

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Phthalates: none

Contaminants: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

MS Table 2 Dimensions 01

Size (HxWxD) mm: 804 x 1000 x 830 mm

Size (HxWxD) Inches: 31.7 x 39.4 x 32.7 inches

Generator Weight: 104kg / 228.8lbs
