Part number: 10-0001

Status Discontinued i

Integrated compressor No

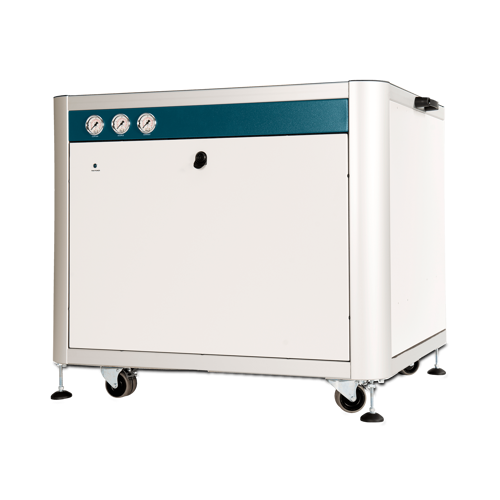

The AB SCIEX table is designed specifically to locate the 4500 & 5500 family of products. The table is available in both standard form and also with an integral gas generator with the capacity to supply all of the instruments in the 4500 & 5500 family.

View active replacement


  • Sound proofed enclosure, significantly reduced noise level
  • Mass Spec sits on top of the unit
  • Plug & play system
  • Easy access for pump service


Gas Type: Air

Max Gas Flow: 12

Site & Installation

Gas Outlets Fitting: 3 x ¼” BSPP

Max Inlet Pressure: 8.3-10 bar (120-145 psi)

Min Air Inlet Flow: 115 L/min (4.06 cfm)

Dew Point: 3°C / 37.4°F

Start Up Time: 30 minutes

Power Consumption: 240

Voltage: 110-240

Frequency: 50/60

Current: 1 Amp

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Accreditations: CE

Dimensions & weight

MS Table 2 Dimensions 01

Size (HxWxD) mm: 804 x 1000 x 830 mm

Size (HxWxD) Inches: 31.7 x 39.4 x 32.7 inches

Generator Weight: 108kg / 237.6lbs
