Application types LC-MS

Part number: 3302382

Status Available i

Integrated compressor

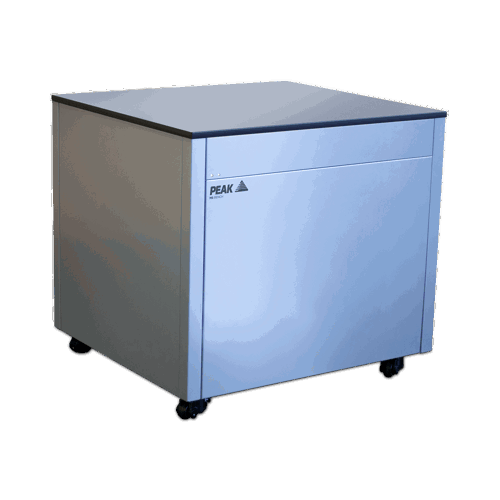

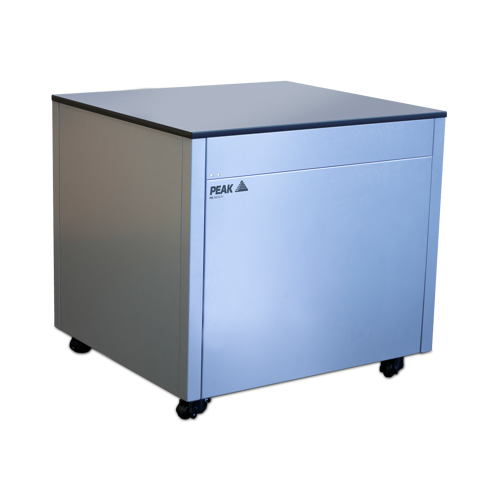

MS Bench SCI 1

Developed exclusively for SCIEX, the MS Bench SCI range provides a modular workstation with provision for either integrated gas generation or a noise abating enclosure for roughing pumps. MS Bench SCI is designed specifically for use with the current and latest mass spectrometers at SCIEX*.

Two variants of the MS SCI Bench are available, both identical in form factor, aesthetics and work surface. MS Bench (G) SCI 1 features a self contained gas generator, providing a reliable and cost-efficient source of both nitrogen (Curtain Gas™) and clean, dry oil-free air for source and exhaust gas at flows and pressures configured to meet SCIEX instrument requirements (excluding IVD medical devices). The other variant, the MS Bench SCI, comes without the gas generator, instead providing a compartment below the bench, suitable for housing up to two MS roughing pumps.

Read more
Request a quote

Features

  • Designed exclusively for SCIEX to provide modular bench solution for all SCIEX LC-MS instruments*
  • Noise abated compartment suitable for housing vacuum pump(s) (non generator variant only) ‘Genius Inside’: true plug & play gas generation (MS Bench (G) SCI 1 only).
  • No external compressed air source required.
  • Noise & vibration dampening, suitable for use as instrumentation bench CSA / FCC / CE compliant
  • Chemical-resistant phenolic resin worktop
  • Self-levelling castor wheels for seamless installation with existing lab bench system
  • Floor-standing Triple TOFs can house vac pumps in MS Bench SCI.

*suitable for all current and latest MS from SCIEX including the new 5500+, but excluding IVD medical device instrument.

Gas

Max Gas Flow: VariableL/min

Site & installation

Power Consumption: 200VA

Voltage: 100 - 240v ±10%

Frequency: 50/60 Hz

Current: 2 Amps

Heat Output: 784 BTU/hr

Max Operating Temp: 30°C / 86°F

Noise Level: 54 (dB)

Dimensions & weight

MS Table 2 Dimensions 01

Size (HxWxD) mm: 804 x 1000 x 830 mm

Size (HxWxD) Inches: 31.7 x 39.4 x 32.7 inches

Generator Weight: 103kg / 226.6lbs

Max Weight Bearing Capability: 272kg / 598.4lbs
