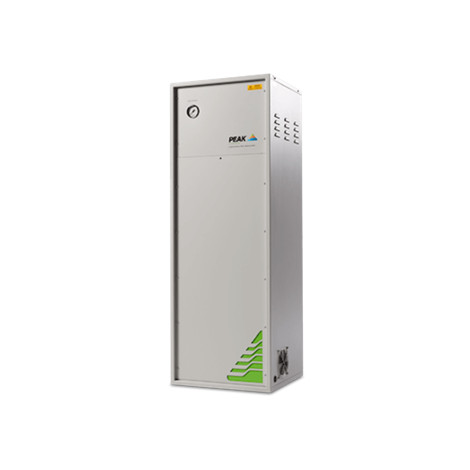

NG3000 ultra high purity nitrogen generators
The NG3000 delivers ultra high purity nitrogen at flows of up to 3 L/min for GC,...
Applications: GC & GC-MS, ICP-MS, CAD & ELSD, CD
10-1210 (230v) - UK
10-1220 (230v) - EU
10-1230 (110v) - US
Status Available i
Gas types Nitrogen
Integrated compressor Yes

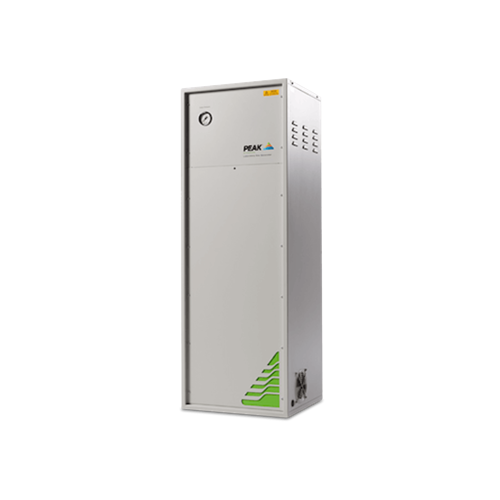

The NG3000A delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of 3 L/min for GC, DSC, DMA and other applications requiring ultra high purity nitrogen at up to 3L/min. The NG3000A comes with an internal compressor for laboratories without an external source of gas.
To reach their ultra high purity nitrogen output these generators use Pressure Swing Adsorption and Carbon Molecular Sieve. These separation technologies remove oxygen and other impurities in air, delivering hassle-free, ultra high purity nitrogen, on-demand for the lab.
Gas Type: Nitrogen
Min Gas Flow: 0
Max Gas Flow: 3
Max Output Pressure: 80psi/5.5bar
Max Purity: 99.9995%
Voltage: 115 / 230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 3.6 Amps / 8 Amps

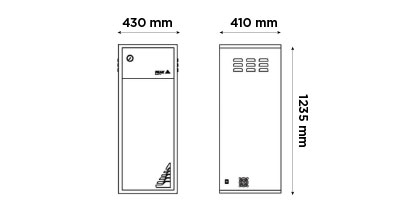

Size (HxWxD) mm: 1235 x 449 x 406.5 mm
Size (HxWxD) Inches: 48.6 x 17.7 x 16 inches
Generator Weight: 88kg / 193.6lbs
With over 20 years' worth of experience in developing gas generator technology alongside leading instrument manufacturers, we offer reliable laboratory gas solutions to meet your specific needs.
