Application Types CAD & ELSD, ICP-MS, GC & GC-MS, CD

Part number: 10-1292 (230v) - UK
10-1295 (230v) - EU
10-1291 (110v) - US

Status Available i

Integrated compressor Yes

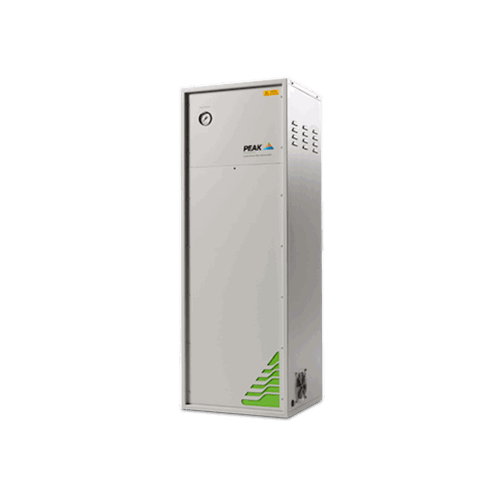

NG5000A ultra high purity nitrogen generator

The NG5000(A) delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of up to 5 L/min for GC, DSC, DMA and other applications requiring ultra high purity nitrogen at up to 5L/min. The NG5000(A) comes with an internal compressor for laboratories without an external source of gas.

To reach their ultra high purity nitrogen output these generators use Pressure Swing Adsorption and Carbon Molecular Sieve. These separation technologies remove oxygen and other impurities in air, delivering hassle-free, ultra high purity nitrogen, on-demand for the lab.

Read more
Request a quote Call (800) 767-6532

Features

  • Suitable for applications such as GC, DSC, DMA Suitable for applications requiring ultra high purity
  • Available with or without an external compressor
  • Contains self-regenerating Carbon Molecular Sieve column
  • Gas is supplied on demand so generator works to your schedule
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0L/min

Max Gas Flow: 5L/min

Max Output Pressure: 80psi/5.5bar

Max Purity: upto 99.9995%

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 130psi/9bar

Start Up Time: 8 hours

Power Consumption: 132 Watts

Voltage: 110 / 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 0.5 Amps / 1.2Amps

Max Operating Temp: 25°C / 77°F

Accreditations: CE

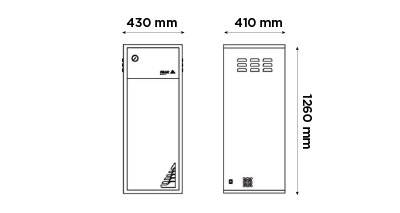

Dimensions & weight

INFINITY NG5000 NITEOGEN GENERATOR

Size (HxWxD) mm: 1235 x 449 x 406.5 mm

Size (HxWxD) Inches: 48.6 x 17.7 x 16 inches

Generator Weight: 88kg / 193.6lbs
