Application Types GC & GC-MS, ICP-MS, CAD & ELSD, CD

Part number: 10-2210 (230v) - UK
10-2211 (230v) - EU
10-2230 (110v) - US

Status Available i

Integrated compressor No

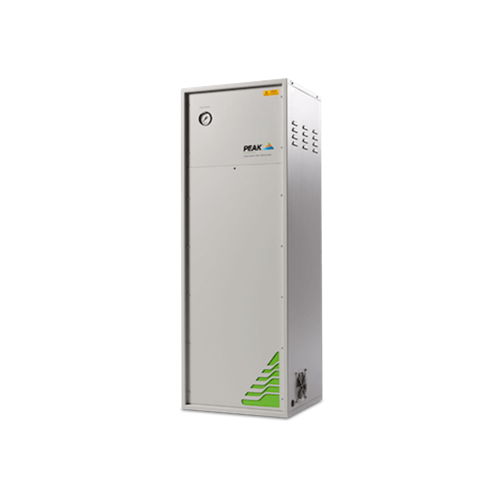

NG3000 ultra high purity nitrogen generators

The NG3000 delivers ultra high purity nitrogen at flows of up to 3 L/min for GC, DSC and DMA applications, as well as other laboratory applications requiring up to 3 L/min of ultra high purity nitrogen. The NG series can be supported by in-house air or supplied with an integrated compressor.

To reach their ultra high purity nitrogen output these generators use Pressure Swing Adsorption and a Carbon Molecular Sieve. These separation technologies remove oxygen and other impurities in air, delivering hassle-free, ultra high purity nitrogen, on-demand for the lab.

Read more
Request a quote Call (800) 767-6532

Features

  • Suitable for applications such as GC, DSC, DMA
  • Suitable for applications requiring ultra high purity
  • Available with or without an external compressor
  • Contains self-regenerating Carbon Molecular Sieve column
  • Gas is supplied on demand so generator works to your schedule
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0

Max Gas Flow: 3

Max Output Pressure: 80psi/5.5bar

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 130psi/9bar

Voltage: 110 / 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 0.5 Amps / 1.2 Amps

Max Operating Temp: 25°C / 77°F

Accreditations: CE

Dimensions & weight

NG3000A Dimensions 01

Size (HxWxD) mm: 1260 x 430 x 410 mm

Size (HxWxD) Inches: 49.6 x 16.9 x 16.1 inches

Generator Weight: 77kg / 169.4lbs
