Application types LC-MS

Part number: 13-1272

Status Available i

Gas types Nitrogen Air

Integrated compressor No

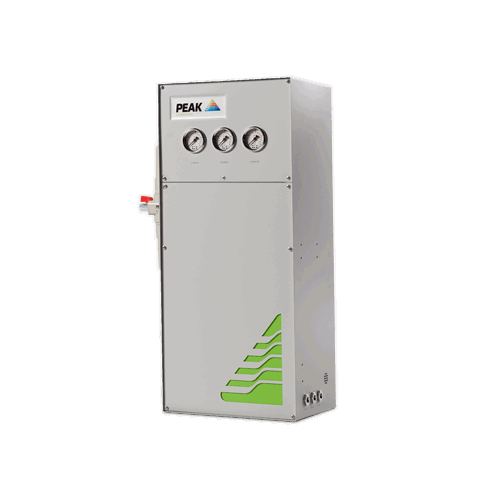

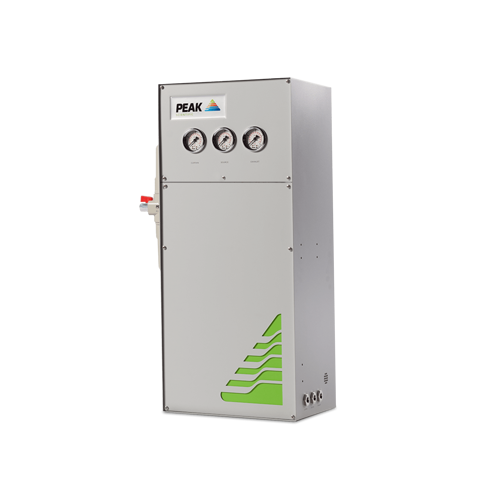

Infinity 1032 nitrogen generators

Membrane technology is at the heart of the Infinity 1032, generating laboratory-grade nitrogen on-site to users with an existing air supply. With the ability to perform at its maximum 24 hours a day, if required, and minimum maintenance requirements, the Infinity 1032 is a durable, hassle-free solution for SCIEX LC-MS instruments requiring curtain gas flows of up to 38 L/min, source gas flows of up to 52 L/min and exhaust gas flows of up to 50 L/min.

Request a quote Call (800) 767-6532

Features

  • Capable of supplying multiple SCIEX LC-MS instruments
  • 24/7 operation at optimum performance if required
  • Gas is supplied on demand so generator works to your schedule
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 38L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 52L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 50L/min

Max Output Pressure: 110psi/7.6bar

Site & installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: 240

Min Inlet Air Quality: 1.4.1

Start Up Time: 30 mins

Power Consumption: none

Voltage: n/a

Frequency: n/a

Current: n/a

Heat Output: none

Max Operating Temp: 30°C / 86°F

Particles: <0.1μm

Phthalates: none

Suspended Liquids: none

Noise Level: none

Accreditations: CE

Dimensions & weight

Infinty 1032 nitrogen generator

Size (HxWxD) mm: 730 x 428 x 250 mm

Size (HxWxD) Inches: 28.7 x 16.9 x 9.8 inches

Generator Weight: 18kg / 39.6lbs
