Application Types LC-MS

Part number: 13-1270

Status Available i

Gas types Nitrogen Air

Integrated compressor No

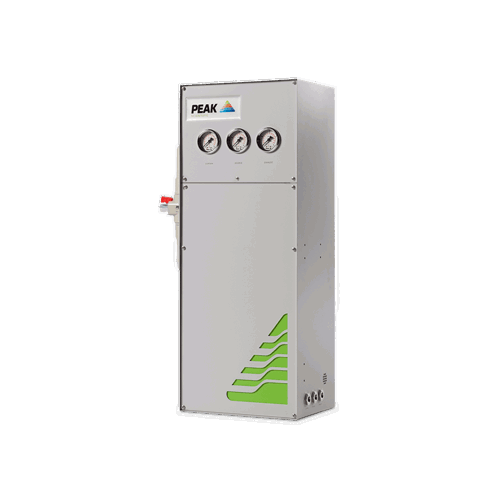

Infinity 1031 nitrogen generator

The Infinity 1031 delivers high purity nitrogen and dry air to support Sciex LC-MS systems. A compressor-free solution, the Infinity 1031 requires an air source to operate. With few moving parts this generator has minimal maintenance requirements and can operate 24 hours a day for hassle free nitrogen.

Request a quote Call (800) 767-6532

Features

  • Capable of supplying most Sciex LC-MS/MS systems
  • 24/7 operation at optimum performance
  • Gas is supplied on demand so generator works to your schedule
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 19

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 26L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 25L/min

Max Output Pressure: 110psi/7.6bar

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: 115

Min Inlet Air Quality: 1.4.1

Start Up Time: 30 mins

Power Consumption: none

Voltage: N/A

Frequency: N/A

Current: N/A

Heat output: none

Max Operating Temp: 30°C / 86°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

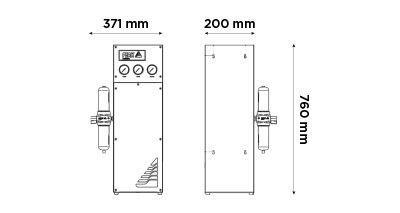

Infinty 1031 Dimensions 01

Size (HxWxD) mm: 760 x 365 x 200 mm

Size (HxWxD) Inches: 29.9 x 14.4 x 7.9 inches

Generator Weight: 14kg / 30.8lbs
