Application Types LC-MS

Part number: 10-6331

Status Available i

Gas types Nitrogen Air

Integrated compressor Yes

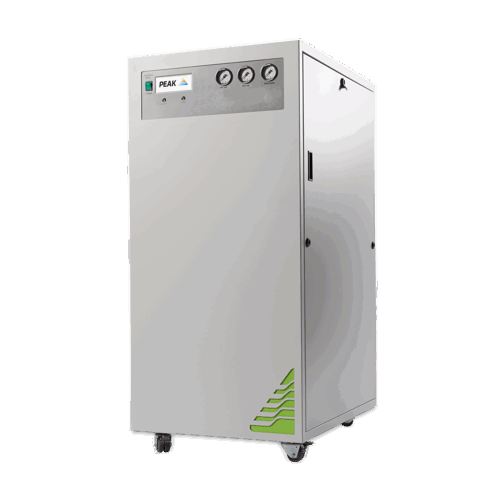

Genius 3031 Nitrogen and dry air gas generator

The Genius 3031 has been engineered with an increased flow rate specifically for Sciex. This greater flow rate means this generator is ideal for supplying curtain (nitrogen), source (dry air) and exhaust (dry air) gas to the Sciex 6500 LC-MS.

Request a quote Call (800) 767-6532

Features

  • Higher flow rate 30 series generators for higher gas demand LC-MS applications such as the 6500 & X500R
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 18L/min

Max Output Pressure: 85psi/5.9bar


Gas Type: Air

Max Gas Flow: 26L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 25L/min

Max Output Pressure: 70psi/4.8bar

Site & Installation

Gas Outlets Fitting: 3x 1/4" BSPP

Start Up Time: 1 hour

Power Consumption: 2760 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 12 A

Heat output: 9412

Max Operating Temp: 35°C / 95°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CSA, CE

Dimensions & weight

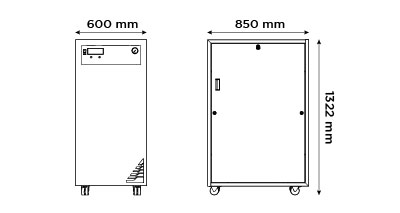

Genius Nitrogen Generator 3010,13,20,22 Dimensions

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 186kg / 409.2lbs
