Application Types LC-MS

Part number: 13-1280

Status Discontinued i

Gas types Nitrogen Air

Integrated compressor No

Infinity 1031 Hi Flow Nitrogen Generator

Membrane technology is at the heart of the Infinity 1031 Hi-Flow generator delivering one output of laboratory-grade nitrogen, and two dry air outputs, the Infinity 1031 Hi-Flow generator is a durable, hassle-free solution for SCIEX LC-MS systems. The choice of Infinity model will depend on the application, with different gas flows defining the differing models. Peak Scientific’s Infinity Series generator has been engineered specifically for laboratories which already have an external source of clean, dry air (we can provide assistance on external compressors or pre-filtration systems as part of an Infinity gas generation solution). These systems contain no moving parts, are effectively silent whilst in operation and require minimal maintenance.

View active replacement


  • Capable of supplying multiple SCIEX LC-MS systems
  • 24/7 operation at optimum performance if required
  • Gas is supplied on demand so generator works to your schedule
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty


Gas Type: Nitrogen

Max Gas Flow: 10

Max Output Pressure: 110psi/7.6bar

Gas Type: Air

Max Gas Flow: 22L/min

Max Output Pressure: 110psi/7.6bar

Gas Type: Air

Max Gas Flow: 10L/min

Max Output Pressure: 60psi/4.1bar

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: 115

Min Inlet Air Quality: 1.4.1

Start Up Time: 30 mins

Power Consumption: none

Voltage: N/A

Frequency: N/A

Current: N/A

Heat output: none

Max Operating Temp: 30°C / 86°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

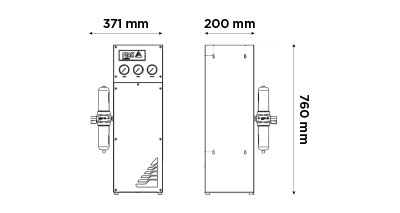

Infinty 1031 Dimensions 01

Size (HxWxD) mm: 760 x 371 x 200 mm

Size (HxWxD) Inches: 29.9 x 14.6 x 7.9 inches

Generator Weight: 18kg / 39.6lbs
