Application types LC-MS

Part number: 10-6030

Status Discontinued i

Gas types Nitrogen Air

Integrated compressor Yes

Genius ABN2ZA Nitrogen Generators

Designed exclusively for SCIEX applications, the Genius ABN2ZA is a three gas output system providing nitrogen and dry air to supply curtain, source, and exhaust gas. This generator is compatible with a wide range of SCIEX LC-MS instruments up to and including the 4600 Triple TOF. The ABN2ZA is built around the trusted and proven technology of Peak Scientific's Genius Series of generators. Designed mainly for LC-MS applications, these are self-contained systems featuring integrated compressors, delivering laboratory-grade nitrogen at various pressures and flow rates required by numerous instruments.

View active replacement

Features

  • Delivers nitrogen as curtain gas and dry air as source and exhaust gas
  • Developed specifically for SCIEX LC-MS instruments
  • Compressor based solution, no need for an external air supply
  • Service indication to allow planning of preventative maintenance
  • Minimal set-up required Highly economical source of nitrogen gas with low lifetime running costs
  • Gas is supplied on demand so works to your schedule
  • High-specification latest generation compressors located in insulated chamber reducing noise and vibration
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 12L/min

Max Output Pressure: 80psi/5.5bar


Gas Type: Air

Max Gas Flow: 24L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 8L/min

Max Output Pressure: 60psi/4.1bar

Site & installation

Voltage: 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 7 Amps

Accreditations: CSA, CE

Dimensions & weight

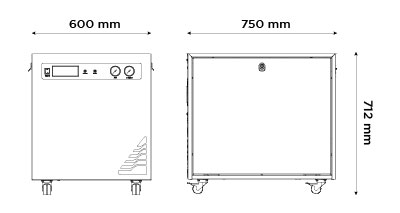

Genius 1025 Dimensions

Size (HxWxD) mm: 713 x 600 x 750 mm

Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches

Generator Weight: 108kg / 237.6lbs
