Application Types CAD & ELSD, LC-MS, Other

Part number: 65-0001

Status Available i

Integrated compressor No

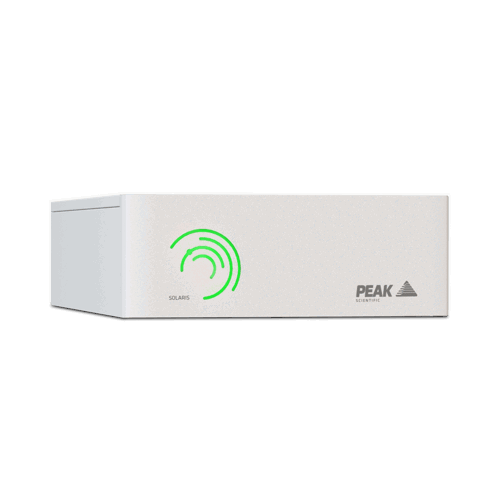

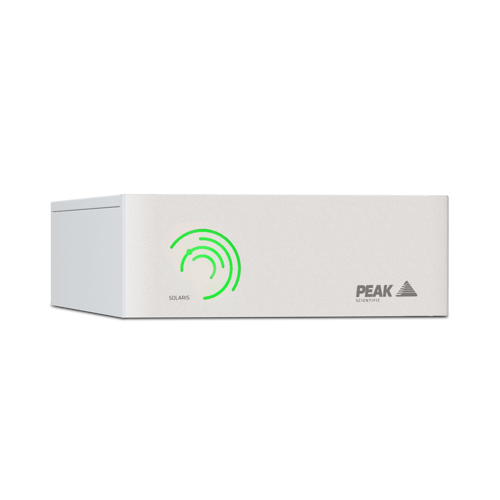

Solaris 10 ELSD nitrogen generator

Peak Scientific’s Solaris 10 Nitrogen generator has been developed to provide an optimal gas generation solution for ELSD or Compact Mass Spectrometers, with the goal of reducing instrument downtime and improving workflow efficiencies. Engineered with a space-saving design, Solaris 10 can be placed on a benchtop and paired with an additional optional Solaris air compressor unit to provide air supply for labs without an in-house air supply or for those who wish to contain their gas supply in a single system.

Request a quote Call (800) 767-6532

Features

  • Variable outlet flow, pressure and purity
  • UHP nitrogen for ELSD at up to 10 L/min, 100 psi and up to 99.5% purity
  • Compact benchtop form factor, discrete aesthetic styling
  • Colour indicative LED lighting for easy status awareness
  • Optional Solaris Air Compressor stackable module
  • Engineered on reliable and proven existing technology
  • Manufactured and tested to highest spec in UK, CE/FCC certified
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 10L/min

Max Output Pressure: 100psi/6.9bar

Max Purity: 99.5%

Site & Installation

Gas Outlets Fitting: 1 x 1/4 " BSPP

Min Inlet Pressure: 80psi/5.5bar

Max Inlet Pressure: 130psi/9bar

Min Air Inlet Flow: 18-30

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Power Consumption: Up to 23 VA

Voltage: 110 / 230 V

Frequency: 50 / 60 Hz

Current: 0.1 A

Heat output: 78 BTU

Max Operating Temp: 35°C / 95°F

Particles: <0.1μm

Contaminants: Phthalate & BHT Free

Suspended Liquids: none

Accreditations: CE, CSA, FCC

Dimensions & weight

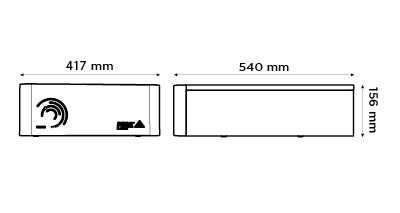

Solaris 10 Dimensions 01

Size (HxWxD) mm: 156 x 416 x 540 mm

Size (HxWxD) Inches: 6.1 x 16.4 x 21.3 inches

Generator Weight: 12kg / 26.4lbs

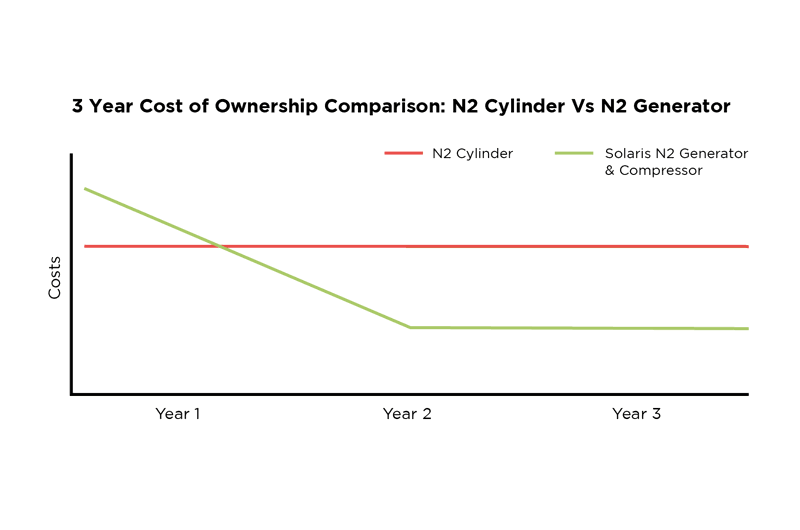

Nitrogen Gas Prices Cylinders vs Generators

Save money with a nitrogen gas generator

With Solaris 10 nitrogen gas generator you can save 29% over 3 years.
