Application Types CAD & ELSD, Sample Preparation, LC-MS

Part number: 3300670

Status Available i

Integrated compressor No

Solaris XE Lab for Waters - N2 solution for ACQUITY™ QDa™

PEAK Scientific’s Solaris XE nitrogen generator offers a reliable, compressor-free gas solution that can comfortably meet the demands of most mass spectrometers within Waters’ portfolio of instruments. Using our tried and tested membrane technology, Solaris XE can operate with varying flow rates (up to 35L/min of high purity nitrogen), purity (up to 99.5%) and outlet pressure can be adjusted down from 116psi.

Solaris XE for Waters has been designed in collaboration with Waters as a dedicated gas solution for the ACQUITY QDa Detector. Solaris XE is fitted with alignment blocks specifically designed to enable the generator to be stacked underneath the ACQUITY QDa in most modular stacking configurations*, providing a compact and discreet space-saving solution within the lab. Alternatively this unit can be wall mounted or free standing on a lab bench.

The Solaris XE has been engineered to provide nitrogen to laboratories that utilize an external source of compressed air, which meets a minimum quality grade of ISO 8573-1:2010 Class 1.4.1.

*Please ask your local sales representative for advice on supported stacking configurations.

Read more
Request a quote


  • Nitrogen up to 35L/min, up to 116 psi and up to 99.5% purity
  • Variable outlet flow, pressure and purity
  • Compact, stackable* system maximizing the use of valuable laboratory floor or bench space
  • Color indicative LED lighting for easy status awareness
  • Manufactured and tested to highest spec in UK, CE/FCC certified
  • Safer and more convenient than pressurized cylinders, dewars or bulk storage
  • 12 month on-site comprehensive warranty
  • Backed by [PEAK Protected] global on premise servicing and technical support

*units stacked on top of Solaris must not exceed 100kg/220.4lbs


Gas Type: Nitrogen

Min Gas Flow: 0

Max Gas Flow: 35

Max Output Pressure: 116psi/8bar

Max Purity: 99.50%*

Site & Installation

Gas Outlets Fitting: 1 x 1/4 " BSPP

Min Inlet Pressure: 80psi/5.5bar

Max Inlet Pressure: 145psi/10bar

Min Inlet Air Quality: ISO 8753-1:2010 Class 1.4.1**

Start Up Time: 5 min

Power Consumption: Up to 6.9 Watts

Voltage: 100 / 230 VAC

Frequency: 50 / 60 Hz

Current: 0.1 Amp

Heat output: 25

Max Operating Temp: 30°C / 86°F

Contaminants: Phthalate & BHT Free

Accreditations: CE, FCC, CSA

Dimensions & weight

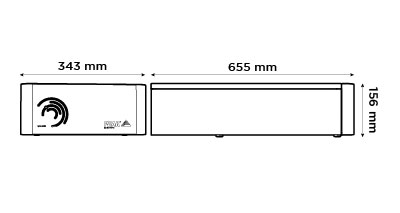

Solaris XE Dimensions

Size (HxWxD) mm: 156 x 343 x 650 mm

Size (HxWxD) Inches: 6.1 x 13.5 x 25.6 inches

Generator Weight: 15kg / 33lbs

Max Weight Bearing Capability: 100kg / 220lbs
