Application Types LC-MS

Part number: 3302770

Status Available i

Gas types Nitrogen Air

Integrated compressor Yes

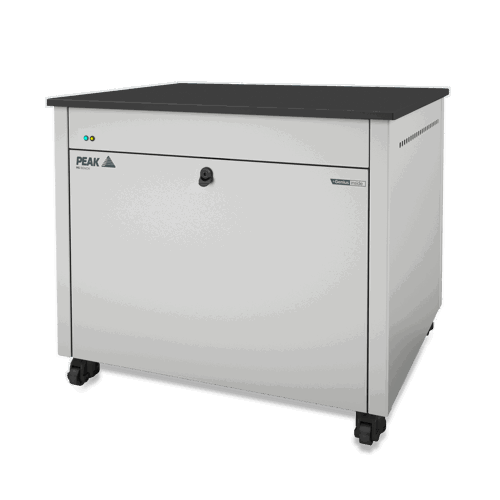

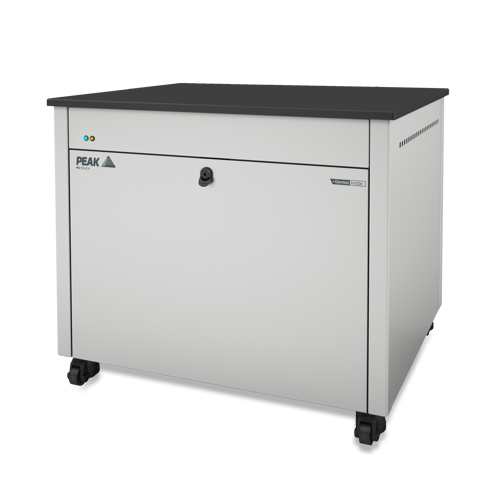

MS Bench (G) SCI 2

Developed exclusively for SCIEX, the MS Bench SCI 2 range provides a modular workstation with provision for either integrated gas generation or a noise abating enclosure for roughing pumps. MS Bench SCI 2 is designed specifically for use with the SCIEX Triple Quad™ 7500 LC-MS/MS System– QTRAP® Ready.


Two variants of the MS Bench SCI 2 are available. MS Bench (G) SCI 2 features a self contained gas generator, providing a reliable and cost efficient source of both nitrogen (Curtain Gas™) and clean, dry oil-free air for source and exhaust gas at flows and pressures configured to meet SCIEX 7500 System requirements. The other variant, the MS Bench SCI 2, comes without the gas generator, instead providing a compartment below the bench, suitable for housing up to two MS roughing pumps.



Read more
Request a quote Call (800) 767-6532

Features

  • Designed exclusively for SCIEX to provide modular bench solution for SCIEX Triple Quad™ 7500 LC-MS/MS System– QTRAP® Ready
  • ‘Genius Inside’: true plug & play gas generation
  • No external compressed air source required
  • Noise & vibration dampening, suitable for use as instrumentation bench
  • Fan assisted cooling for vacuum pumps
  • Reclassifier vent preventing internal condensation (MS Bench (G) SCI 2 only)
  • CSA / FCC / CE compliant
  • Chemical-resistant phenolic resin worktop
  • Levelling castor wheels for seamless installation with existing lab bench system



Gas

Gas Type: Nitrogen

Max Gas Flow: 25L/min

Max Output Pressure: 60psi/4.1bar


Gas Type: Air

Max Gas Flow: 26L/min

Max Output Pressure: 100psi/6.9bar


Gas Type: Air

Max Gas Flow: 25L/min

Max Output Pressure: 70psi/4.8bar

Site & Installation

Power Consumption: 1,800VA

Voltage: 220 - 240v ±10%

Frequency: 50/60 Hz

Current: 7 A

Heat output: 3753 BTU/hr

Max Operating Temp: 30°C / 86°F

Particles: <0.01μm

Phthalates: None

Noise Level: 60

Dimensions & weight

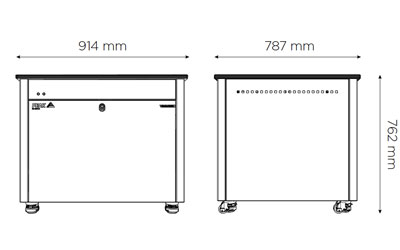

SCI 2 Linedrawing

Size (HxWxD) mm: 762 x 914 x 787 mm

Size (HxWxD) Inches: 30 x 36 x 31 inches

Generator Weight: 160kg / 352lbs
