Application Types LC-MS

Part number: 3303000

Status Available i

Gas types Air Air Category

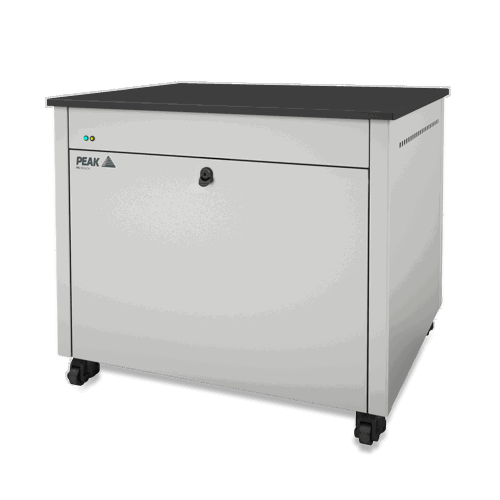

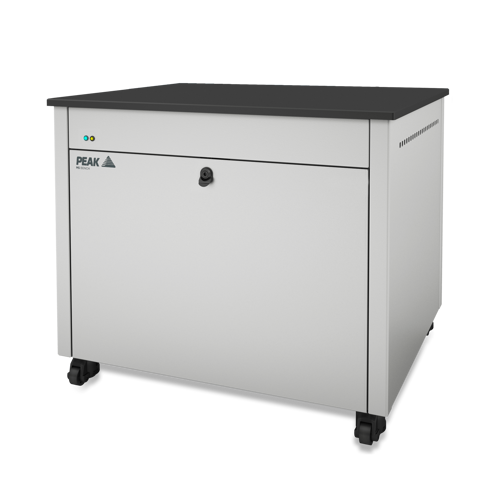

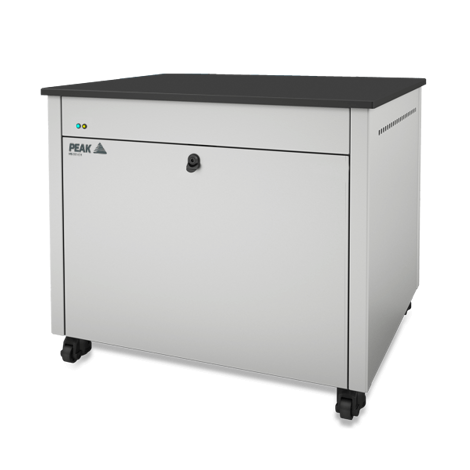

MS Bench SCI 2

Developed exclusively for SCIEX, the MS Bench SCI 2 range provides a modular workstation with provision for either integrated gas generation or a noise abating enclosure for roughing pumps. MS Bench SCI 2 is designed specifically for use with the SCIEX Triple Quad™ 7500 LC-MS/MS System– QTRAP® Ready.

Two variants of the MS Bench SCI 2 are available. MS Bench (G) SCI 2 features a self-contained gas generator, providing a reliable and cost efficient source of both nitrogen (Curtain Gas™) and clean, dry oil-free air for source and exhaust gas at flows and pressures configured to meet SCIEX 7500 System requirements. The other variant, the MS Bench SCI 2, comes without the gas generator, instead providing a compartment below the bench, suitable for housing up to two MS roughing pumps.


Read more
Request a quote


  • Designed exclusively for SCIEX to provide modular bench solution for SCIEX Triple Quad™ 7500 LC-MS/MS System– QTRAP® Ready
  • Noise abated compartment suitable for housing vacuum pump(s) (non generator variant only)
  • ‘Genius Inside’: true plug & play gas generation (MS Bench (G) SCI 2 only)
  • No external compressed air source required
  • Noise & vibration dampening, suitable for use as instrumentation bench
  • Fan assisted cooling for vacuum pumps
  • Reclassifier vent preventing internal condensation (MS Bench (G) SCI 2 only)
  • CSA / FCC / CE compliant
  • Chemical-resistant phenolic resin worktop
  • Levelling castor wheels for seamless installation with existing lab bench system



Max Gas Flow: VariableL/min

Site & Installation

Power Consumption: 240

Frequency: 60 Hz

Max Operating Temp: 30°C / 86°F

Noise Level: noise abating to 60 dB(A)

Accreditations: CE, FCC, CSA

Dimensions & weight

SCI 2 Linedrawing

Size (HxWxD) mm: 762 x 1041 x 787 mm

Size (HxWxD) Inches: 30 x 41 x 31 inches

Generator Weight: 103kg / 226.6lbs
