Part number: 10-2250

Status Discontinued i

Gas types Nitrogen

Integrated compressor No

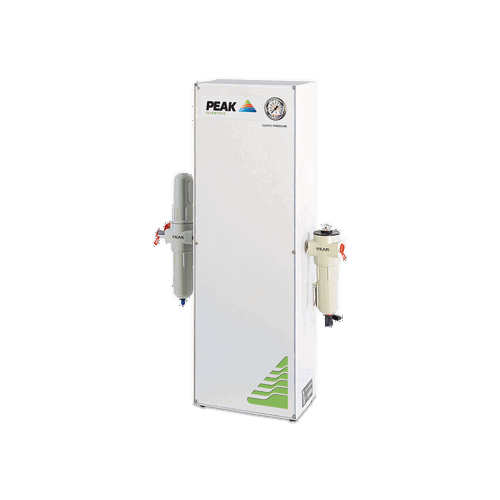

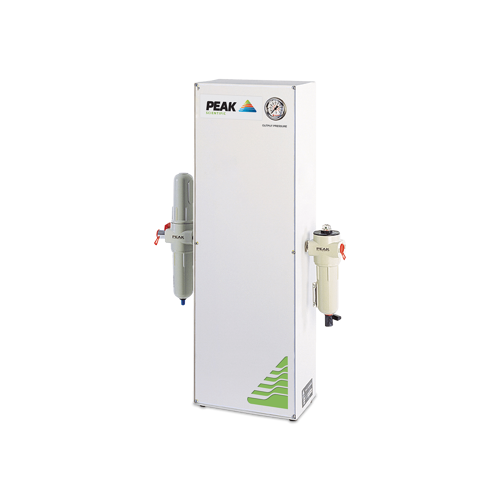

Infinity NM32L Nitrogen Generator

The Infinity NM32L nitrogen generator employs membrane technology to provide analytical grade nitrogen for LC-MS and a range of other laboratory applications in conjunction with an in-house compressed air supply. With few moving parts, this generator has a long life and, if required, can operate effortlessly 24 hours a day.

View active replacement

Features

  • Delivers nitrogen at up to 32L/min
  • This generator is capable of supplying majority of LC-MS instruments
  • 24/7 operation at optimum performance
  • Highly economical source of nitrogen with low lifetime running costs
  • Few moving parts means little maintenance and ensures long life of the generator
  • Gas is supplied on demand so generator works to your schedule
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 100psi/6.9bar

Site & installation

Min Inlet Pressure: 100psi/6.9bar

Max Inlet Pressure: 100psi/6.9bar

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Dew Point: 40°C / 104°F

Start Up Time: 60 mins

Power Consumption: none

Voltage: N/A

Frequency: N/A

Current: N/A

Heat Output: none

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Phthalates: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

Genius NM32LA Dimensions

Size (HxWxD) mm: 713 x 600 x 750 mm

Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches

Generator Weight: 18kg / 39.6lbs
