Application Types LC-MS

Part number: 13-1282

Status Available i

Integrated compressor No

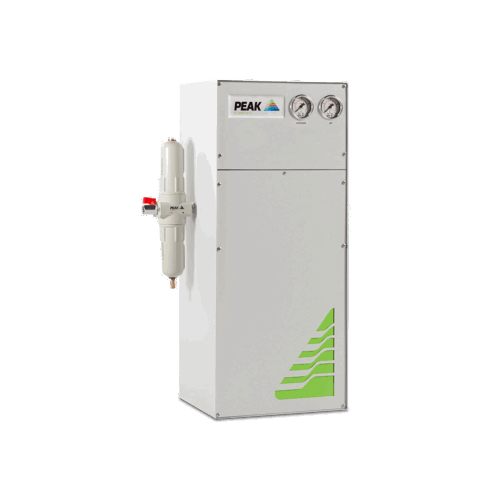

Infinity 1051 Nitrogen Generator

Designed and engineered as an on-site, compressorless nitrogen generation solution tailored for the Shimadzu LCMS-8045, 8050 or 8060, the Infinity 1051 delivers one output of nitrogen and another of dry air to laboratories who already have an existing air supply.

Request a quote Call (800) 767-6532

Features

  • Both a nitrogen and dry air output suitable for the Shimadzu LCMS-8045/50/60 and instruments requiring similar specifications
  • 24/7 operation at optimum performance if required
  • Gas is supplied on demand so generator works to your schedule
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0

Max Gas Flow: 25

Max Output Pressure: 100psi/6.9bar


Gas Type: Air

Max Gas Flow: 25L/min

Max Output Pressure: 110psi/7.6bar

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: 110

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Start Up Time: 60 mins

Power Consumption: none

Voltage: N/A

Frequency: N/A

Current: N/A

Heat output: none

Max Operating Temp: 30°C / 86°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

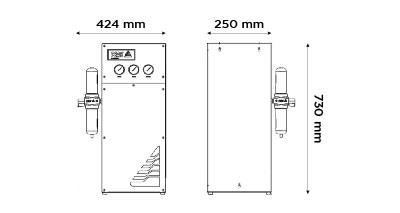

Infinty 1045 Dimensions 01

Size (HxWxD) mm: 730 x 424 x 250 mm

Size (HxWxD) Inches: 28.7 x 16.7 x 9.8 inches

Generator Weight: 21kg / 46.2lbs
