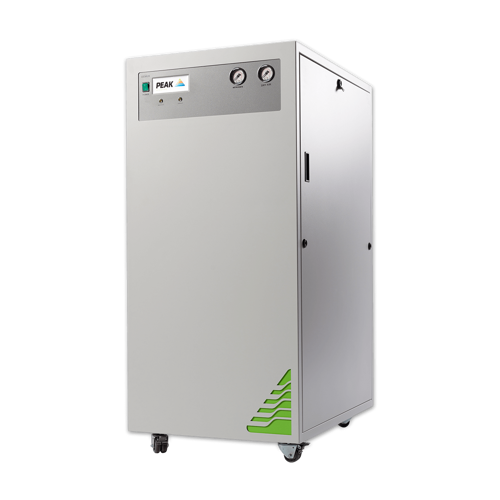

Engineered specifically for the Shimadzu LCMS-8045, LCMS-8050, LCMS-8060 and LCMS-9030 instruments, the Genius 3051 provides one output of phthalate free, high purity nitrogen at up to 27 L/min and one of dry air at up to 29 L/min. This will provide enough high purity gas to support these instruments even when being operated in 'high flow gas delivery mode' and for some uses up to two instruments in 'standard gas delivery mode'.
View active replacementGas Type: Nitrogen
Min Gas Flow: 0L/min
Max Gas Flow: 27L/min
Max Output Pressure: 100psi/6.9bar
Gas Type: Air
Min Gas Flow: 0L/min
Max Gas Flow: 29L/min
Max Output Pressure: 100psi/6.9bar
Start Up Time: 30 mins
Power Consumption: Up to 2760 VA
Voltage: 230 V ± 10%
Frequency: 50 / 60 Hz
Current: 12 A
Max Operating Temp: 35°C / 95°F
Particles: none
Phthalates: none
Contaminants: none
Suspended Liquids: none
Accreditations: CSA, FCC, CE

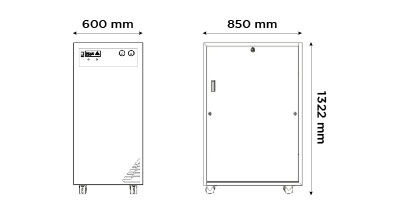

Size (HxWxD) mm: 1322 x 600 x 850 mm
Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
Generator Weight: 216kg / 475.2lbs
With over 20 years' worth of experience in developing gas generator technology alongside leading instrument manufacturers, we offer reliable laboratory gas solutions to meet your specific needs.
