i-FlowLab Prime 7XX2
i-Flow from PEAK Scientific provides a total laboratory solution for on-site generation of nitrogen gas.
Applications: LC-MS, GC & GC-MS, ICP-MS, FT-IR, MP-AES, CAD & ELSD, Sample Preparation
Application Types LC-MS, GC & GC-MS, ICP-MS, FT-IR, MP-AES, CAD & ELSD, Sample Preparation
Part number:
3304451
3304452
3304453
3304454
3304455
3304456
3304457
3304458
3304459
3304460
Status Available i
Integrated compressor No
i-FlowLab Prime 7XX1 laboratory nitrogen supply
i-Flow Prime nitrogen generators have been engineered by PEAK's gas generation specialists to meet the total nitrogen supply needs of manufacturing and processing facilities. Harnessing the latest gas purification technologies, i-Flow Prime delivers nitrogen at flow rates from 0.76-268.32 M3/h* and is available in over 100 pre-configured flow and purity specifications. i-Flow is a modular and scalable design with the option to increase the flow rate retrospectively as your nitrogen requirements grow.
The 7XX1 range includes an oxygen analyzer which provides real-time purity monitoring as a percentage. i-Flow Prime also comes with our built-in PurityGuard™ gas monitoring, application safeguard system and integrated air filtration for additional peace of mind.
Read more
Request a quote
Extend warranty
up to 5 years!
Features
- Cost effective, total laboratory nitrogen gas supply solution
- Consistent & reliable, always available on-demand to meet application needs
- Energy efficient, with low ongoing running costs & minimal maintenance
- Scalable & future-proof design, with ability to expand capacity by adding more CMS columns
- Safe and convenient, no more manual handling or on-site health & safety concerns
- Verified industry standards compliance (EIGA, EC Food Grade, European Pharmacopoeia, JECFA & US FDA)
- Built-in oxygen analyzer, for continuous, real time monitoring of nitrogen purity & quality
- Optional purity safeguard, auto-bypass feature for purity critical applications
- i-Flow generators come ready with remote control & monitoring systems, along with optional interfaces for live status tracking & BMS integration
- Take complete control of your costs & nitrogen gas requirements, by bringing your supply in-house
- Eliminate the need for gas cylinders, LN2 dewars /micro-bulk deliveries or large bulk liquid trucking
- Reduce your on-site carbon footprint & become a self-reliant and sustainable operation
Gas
Gas Type: Nitrogen
Min Gas Flow: 204L/min
Max Gas Flow: 4472L/min
Max Purity: 99.5%
Site & Installation
Max Inlet Pressure: 167psi/11.5bar
Min Air Inlet Flow: Dependent on required flow rate
Min Inlet Air Quality: ISO 8573-1:2010 Class 2.4.1
Start Up Time: Dependent on model
Power Consumption: 250 Watts
Voltage: 100-230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 2.0-1.0 Amp
Max Operating Temp: 50°C / 122°F
Particles: <0.01µm
Noise Level: 59dBa @1m
Accreditations: CSA, CE
Dimensions & weight

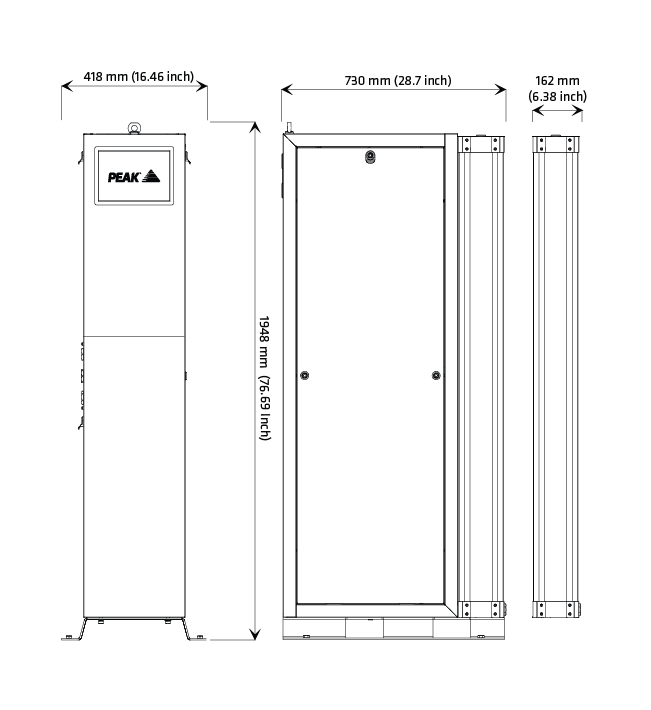

Size (HxWxD) mm: 1948 x 418 x 730 mm
Size (HxWxD) Inches: 76.7 x 16.5 x 28.7 inches
Generator Weight: 179kg / 393.8lbs
Service Requirements
Annual maintenance
Annual O2 analyzer calibration (optional)
Replace O2 analyzer every 4 years
General
Expand to meet demand: i-FlowLab can be expanded to include up to 10 banks. Each bank is 162mm (6.4") and total depth of a 10 bank system including the i-FlowLab system is 2188mm (86.1").
i-Flow 7000 Series Nitrogen Generators
i-FlowLab Reviews
Joseph Robinson - Nurix, Inc.
"Unbelievably dependable system, operating within a consistent range of pressure and purity that supports all of our scientific lab operations."
A centralized system like i-FlowLab represents a huge saving over cylinders and liquid delivery systems and produces gas of higher purity (i.e. lower noise in the mass spec traces).Frankie Busetti
Edith Cowan University, Australia
I would strongly recommend the i-FlowLab to just about any industry that needs a pure, reliable source of nitrogen. The system has a small carbon footprint, is reliable, compact and can be easily installed in a mechanical room inside a facility.Scott Cobranchi
Sealed Air Corporation

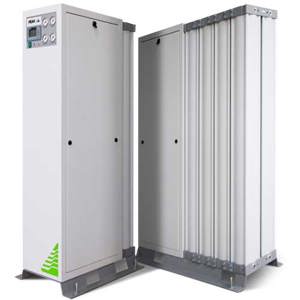

I would definitely recommend for the following reasons: Single point solution, Easy maintenance, Avoids space & noise constraint inside the lab.Rajesh Kumar Suvvaru
ZenRise Clinical Research Pvt Ltd
Discover your ROI
PEAK's ROI calculator is an easy-to-use online tool that will quickly help you see when you can expect to make a return on your investment on your gas generator. . By answering a few simple questions, we will calculate how many months it will take to make a return.
