i-FlowLab Mini 7XX2 laboratory nitrogen supply
i-FlowLab Mini nitrogen generators have been engineered by PEAK's gas generation specialists to meet the total nitrogen supply needs of manufacturing and processing facilities.
Harnessing the latest gas purification technologies, i-FlowLab 7XX2-M delivers nitrogen at flow rates from 13 l/min to 584 l/min* and is available in multiple pre-configured flow and purity specifications. i-FlowLab is a modular and scalable design with the option to increase the flow rate retrospectively as your nitrogen requirements grow.
Read more
Request a quote
Features
- Cost effective, total laboratory nitrogen gas supply solution
- Consistent & reliable, always available on-demand to meet application needs
- Energy efficient, with low ongoing running costs & minimal maintenance
- Scalable & future-proof design, with ability to expand capacity by adding more CMS columns
- Safe and convenient, no more manual handling or on-site health & safety concerns
- Verified industry standards compliance (EIGA, EC Food Grade, European Pharmacopoeia, JECFA & US FDA)
- Built-in oxygen analyzer, for continuous, real time monitoring of nitrogen purity & quality
- Optional purity safeguard, auto-bypass feature for purity critical applications
- i-Flow generators come ready with remote control & monitoring systems, along with optional interfaces for live status tracking & BMS integration
- Take complete control of your costs & nitrogen gas requirements, by bringing your supply in-house
- Eliminate the need for gas cylinders, LN2 dewars /micro-bulk deliveries or large bulk liquid trucking
- Reduce your on-site carbon footprint & become a self-reliant and sustainable operation
Gas
Gas Type: Nitrogen
Min Gas Flow: 65L/min
Max Gas Flow: 584L/min
Max Purity: 99.5%
Site & Installation
Max Inlet Pressure: 167psi/11.5bar
Min Air Inlet Flow: Dependent on required flow rate
Min Inlet Air Quality: ISO 8573-1:2010 Class 2.4.1
Start Up Time: Dependent on model
Power Consumption: 250 Watts
Voltage: 100 - 240 VAC ±10%
Frequency: 50 / 60 Hz
Current: 2.0-1.0 Amp
Max Operating Temp: 50°C / 122°F
Particles: <0.01µm
Noise Level: 59dBa @1m
Accreditations: CSA, CE

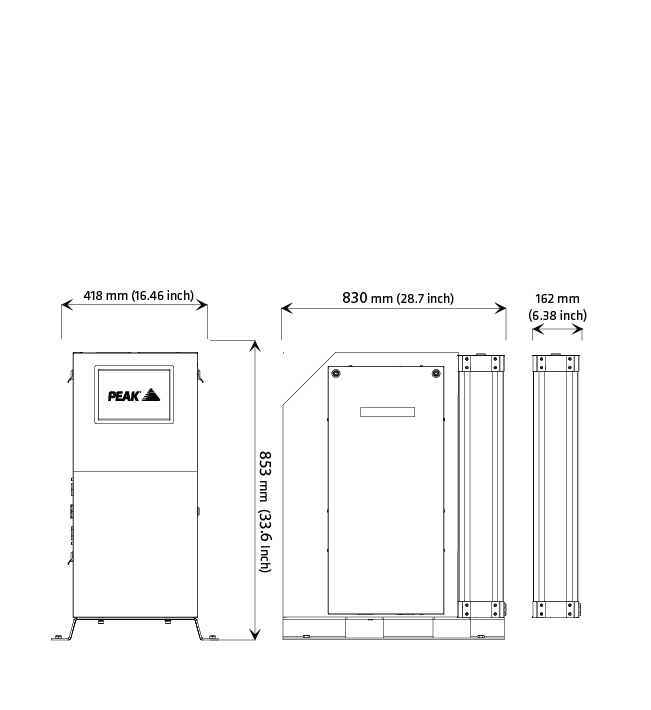

Dimensions & weight
Size (HxWxD) mm: 853 x 418 x 830 mm
Size (HxWxD) Inches: 33.6 x 16.5 x 32.7 inches
Generator Weight: 96kg / 211.2lbs
Service Requirements
Annual maintenance
Annual O2 analyzer calibration (optional)
Replace O2 analyzer every 4 years
General
Expand to meet demand: i-FlowLab Mini can be expanded to include up to 4 banks. Each bank is 162mm (6.4") and total depth of a 4 bank system including the i-FlowLab system is 1316mm (51.8").
