Application Types LC-MS, CAD & ELSD, Sample Preparation

Part number: 3304472

Status Available i

Integrated compressor No

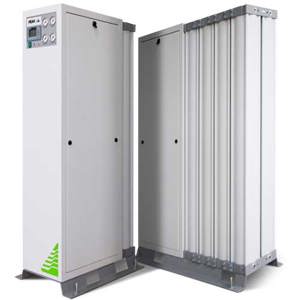

i-FlowLab Mini 7XX1 laboratory nitrogen supply

i-FlowLab Mini nitrogen generators have been engineered by Peak’s gas generation specialists to meet the total nitrogen supply needs of manufacturing and processing facilities.

Harnessing the latest gas purification technologies, i-FlowLab 7XX1-M delivers nitrogen at flow rates from 13 l/min to 584 l/min* and is available in multiple pre-configured flow and purity specifications. i-FlowLab is a modular and scalable design with the option to increase the flow rate retrospectively as your nitrogen requirements grow.

Read more
Request a quote


  • Cost effective, total laboratory nitrogen gas supply solution
  • Consistent & reliable, always available on-demand to meet application needs
  • Energy efficient, with low ongoing running costs & minimal maintenance
  • Scalable & future-proof design, with ability to expand capacity by adding more CMS columns
  • Safe and convenient, no more manual handling or on-site health & safety concerns
  • Verified industry standards compliance (EIGA, EC Food Grade, European Pharmacopoeia, JECFA & US FDA)
  • Built-in oxygen analyzer, for continuous, real time monitoring of nitrogen purity & quality
  • Optional purity safeguard, auto-bypass feature for purity critical applications
  • i-Flow generators come ready with remote control & monitoring systems, along with optional interfaces for live status tracking & BMS integration
  • Take complete control of your costs & nitrogen gas requirements, by bringing your supply in-house
  • Eliminate the need for gas cylinders, LN2 dewars /micro-bulk deliveries or large bulk liquid trucking
  • Reduce your on-site carbon footprint & become a self-reliant and sustainable operation


Gas Type: Nitrogen

Min Gas Flow: 13L/min

Max Gas Flow: 171L/min

Max Purity: 99.9995%

Site & Installation

Max Inlet Pressure: 167psi/11.5bar

Min Air Inlet Flow: Dependent on required flow rate

Min Inlet Air Quality: ISO 8573-1:2010 Class 2.4.1

Start Up Time: Dependent on model

Power Consumption: 250 Watts

Voltage: 100 - 240 VAC ±10%

Frequency: 50 / 60 Hz

Current: 2.0-1.0 Amp

Max Operating Temp: 50°C / 122°F

Particles: <0.01µm

Noise Level: 59dBa @1m

Accreditations: CSA, CE

Dimensions & weight

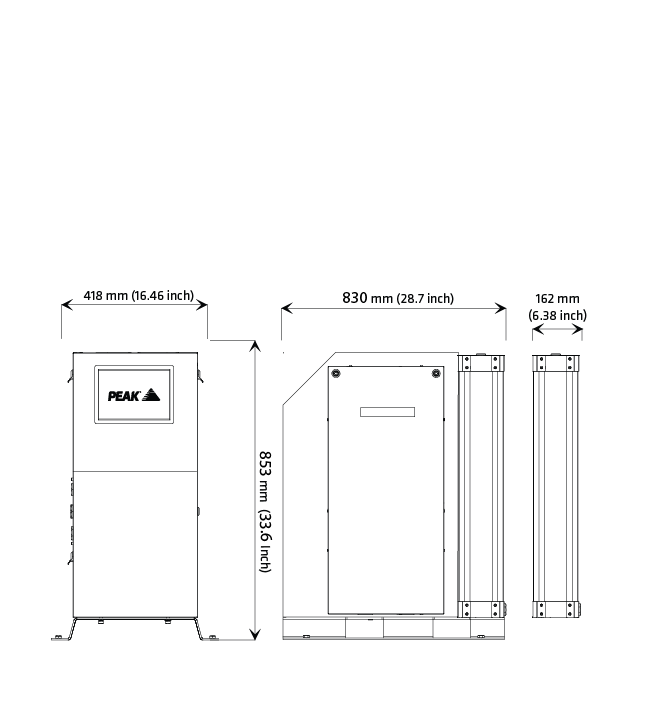

Iflow Mini Line Drawing

Size (HxWxD) mm: 853 x 418 x 830 mm

Size (HxWxD) Inches: 33.6 x 16.5 x 32.7 inches

Generator Weight: 96kg / 211.2lbs

Service Requirements

Annual maintenance

Annual O2 analyzer calibration (optional)

Replace O2 analyzer every 4 years


Expand to meet demand: i-FlowLab Mini can be expanded to include up to 4 banks. Each bank is 162mm (6.4") and total depth of a 4 bank system including the i-FlowLab system is 1316mm (51.8").
