Application Types LC-MS

Part number: 10-1017

Status Discontinued i

Integrated compressor Yes

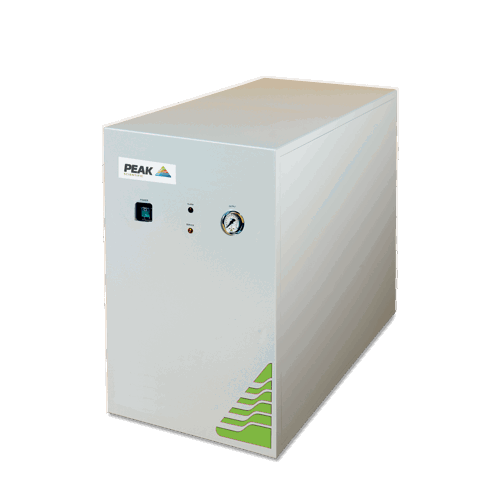

Genius N418LA Nitrogen Generator

Name: Genius N418LA Nitrogen Generator
Brand: Peak Scientific
SKU: 10-1017

Designed to function to the requirements of the Thermo Scientific detectors delivering a maximum of 18 L/min laboratory grade nitrogen for LC-MS.

View active replacement

Features

Delivers safe and practical laboratory-grade nitrogen at up to 18 L/min
Compressor based solution, no need for an external air supply
Service indication to allow planning of preventative maintenance
High-specification latest generation compressors located in insulated chamber reducing noise and vibration
Minimal set-up required
Highly economical source of nitrogen gas with low lifetime running costs
Gas is supplied on demand so generator works to your schedule
Proven robust and reliable nitrogen gas generation technology
12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 18L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Start Up Time: 30 mins

Power Consumption: 828 VA

Voltage: 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 3.6 A

Heat output: 2823 BTU

Max Operating Temp: 25°C / 77°F

Particles: <0.01μm

Phthalates: none

Contaminants: none

Suspended Liquids: none

Accreditations: CSA, FCC, CE

Dimensions & weight

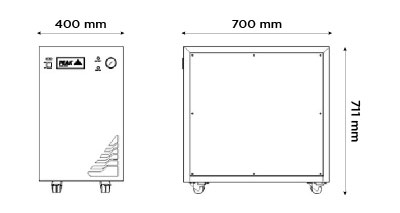

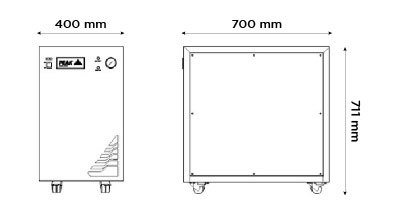

Size (HxWxD) mm: 711 x 400 x 700 mm

Size (HxWxD) Inches: 28 x 15.7 x 27.6 inches

Generator Weight: 60kg / 132lbs

Downloads

Genius N118LA & N418LA - User Manual (Eng)

Genius N118LA & N418LA - Installation Guide (Eng)

Related Products

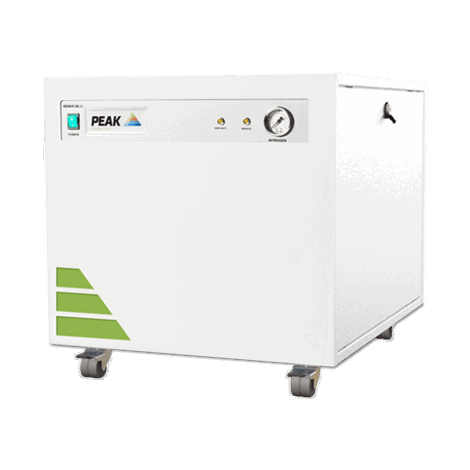

Genius SQ 24 nitrogen generator

For labs using any Single Quad LC-MS systems, the Genius SQ 24 nitrogen gas generator delivers analytical grade nitrogen supply dedicated for this instrument. With a compact size to fit under most lab benches and flow rates of up to 24 L/min, meeting and exceeding the maximum flow rate required by any Single Quad LC-MS on the market today, your lab can enjoy hassle free nitrogen gas which helps you deliver the best analytical results with the Genius SQ24.

Applications: LC-MS

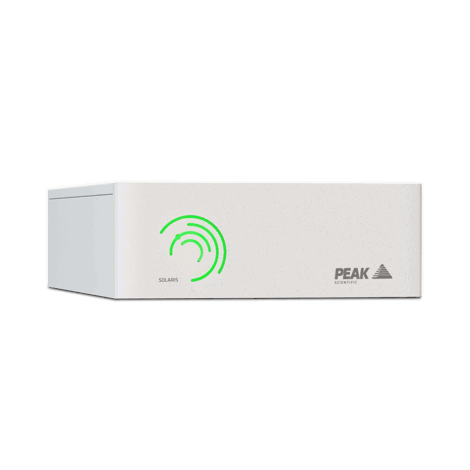

Solaris 10 ELSD nitrogen generator
