Application Types LC-MS

Part number: 10-8015

Status Discontinued i

Gas types Nitrogen Air

Integrated compressor Yes

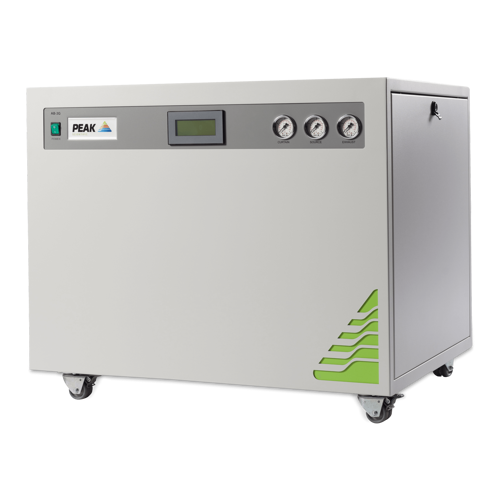

Genius AB-3G Hi-flow Nitrogen Generators

The Genius AB-3G has been designed to provide a continuous and reliable gas supply to meet the precise requirements of several SCIEX LC-MS instruments. A three gas system, the AB-3G provides nitrogen and dry air to supply curtain, source and exhaust gas; additionally the generator benefits from three integrated compressors with redundancy, making it a complete standalone solution for mission-critical applications.The AB-3G is based on Peak Scientific's Genius Series of generators: designed mainly for LC-MS applications, are selfcontained systems featuring integrated compressors, delivering laboratory-grade nitrogen at a range of pressures and flow rates to satisfy the requirements of a wide selection of instruments.

Features

Hi-Flow delivers curtain, source and exhaust gas for Sciex LC-MS
Additional compressor capacity to ensure continuous operation in unlikely event of one compressor failure
Engineered specifically for Sciex instruments
Built to ensure uninterrupted supply of gas for clinical applications
Advanced alarms in the unlikely event of product issues
Generator has the capacity to self-diagnose to inform when maintenance is required
Minimal set-up required
Highly economical source of nitrogen gas with low lifetime running costs
Gas is supplied on demand so generator works to your schedule
Compressors are housed in an insulated compartment to reduce noise and vibration
12 month comrpehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 12L/min

Max Output Pressure: 80psi/5.5bar

Gas Type: Air

Max Gas Flow: 24L/min

Max Output Pressure: 110psi/7.6bar

Gas Type: Air

Min Gas Flow: 0L/min

Max Gas Flow: 14L/min

Max Output Pressure: 60psi/4.1bar

Site & Installation

Gas Outlets Fitting: 3x 1/4" BSPP

Start Up Time: 30 mins

Power Consumption: 2185 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 9.5 A

Heat output: 7451 BTU

Max Operating Temp: 30°C / 86°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE

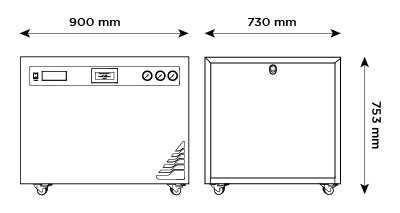

Dimensions & weight

Size (HxWxD) mm: 753 x 900 x 730 mm

Size (HxWxD) Inches: 29.6 x 35.4 x 28.7 inches

Generator Weight: 145kg / 319lbs

Downloads

Genius AB-3G - User Manual (Eng)

AB-3G - Installation Guide (Eng)
