Application Types LC-MS

Part number: 10-6322

Status Discontinued i

Integrated compressor Yes

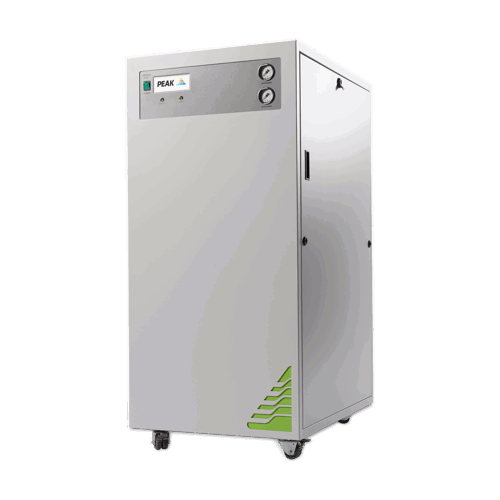

Genius 3022 Nitrogen Generator

Designed, engineered and built in conjunction with Thermo Scientific for the Q Exactive, the Genius 3022 has increased pressure capabilities compared to its parent generator, the Genius 3020. With two separate nitrogen outputs, this generator can supply two Q Exactive mass spectrometers.

View active replacement Call (800) 767-6532

Features

  • Combines two Genius units into one with the same quality output
  • Each gas supply is controlled manually and is independent of the other
  • Higher flow 30 series generator designed for hungrier LC-MS applications
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 116psi/8bar


Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 116psi/8bar

Site & Installation

Gas Outlets Fitting: 2x 1/4" BSPP

Start Up Time: 30 mins

Power Consumption: 2760 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 12 A

Heat output: 9412

Max Operating Temp: 35°C / 95°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CSA, CE

Dimensions & weight

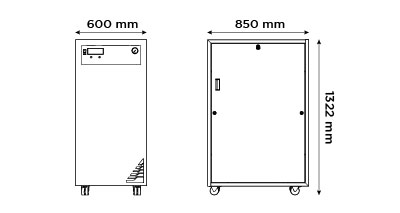

Genius Nitrogen Generator 3010,13,20,22 Dimensions

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 189kg / 415.8lbs
