Application Types CAD & ELSD, LC-MS, Sample Preparation
Part number:
3300253
Status Available i
Integrated compressor Yes
Inspired by the success of our best-selling Genius line of nitrogen gas generators for LC-MS/MS, Genius XE Nitrogen is a cutting-edge evolution combining advanced technology with refined and robust engineering. With two models - XE 35 (up to 35 L/min) and XE 70 (up to 70 L/min) - Genius XE Nitrogen provides a premium, standalone nitrogen solution for high performance LC-MS/MS and other mission-critical laboratory applications where performance and reliability are paramount.
Featuring Multi-Stage Purification™ and next-generation integrated compressors with Electronic Compressor Optimization™ (ECO) technology, Genius XE delivers factory certifiable purity up to 99.5% on-demand, 24/7 with a convenient fixed annual service interval.
Extend warranty
up to 5 years!
*Year 2 of warranty subject to generator being serviced at end of year 1 by a PEAK-approved agent in accordance with fixed annual maintenance schedule. For full terms and conditions visit: www.peakscientific.com/warranty-statement
** Factory certified purity with respect to O2 content. Actual purity varies in relation to flow (min. 95% at maximum flow output)
*** Noise level expressed as SPL (Sound Pressure Level) measured at 1m from source in a reverberant chamber
Gas Type: Nitrogen
Max Gas Flow: 70L/min
Hydrocarbon Content: <1ppm
Max Output Pressure: 116psi/8bar
Max Purity: 99.5% **
Gas Outlets Fitting: 1 x 1/4" BSPP
Start Up Time: 30 mins
Power Consumption: 2530 VA
Voltage: 230 VAC
Frequency: 50/60 Hz
Current: 12A
Heat output: 8785
Max Operating Temp: 35°C / 95°F
Particles: <0.01µm
Phthalates: Phthalate & BHT Free
Contaminants: none
Suspended Liquids: none
Noise Level: 59.3 dBA ***
Accreditations: CE, CSA, FCC, KC

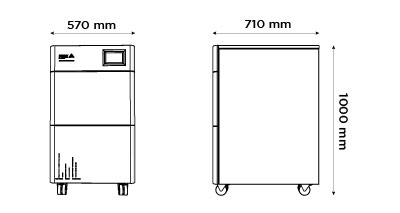

Size (HxWxD) mm: 1000 x 570 x 710 mm
Size (HxWxD) Inches: 39.4 x 22.4 x 28 inches
Generator Weight: 147kg / 323.4lbs
Genius XE Nitrogen - Data Sheet (Eng)
Genius XE Series - User Manual
Genius XE Series - Site Preparation Guide (Eng)
Genius XE Series - Installation Guide (Eng)
Genius XE - Unpacking Instructions (Eng)
ACT Label - PEAK Scientific Genius XE 70 - 3300253-US
"We use our Genius XE for both purging our vacuum chambers and to provide an inert atmosphere during component bakeout; it is excellent for this job...The unit is quiet, adaptive, and reactive to our laboratory's changing needs...Compared to the hassle, expense, and uncertainty of bottled gas this generator will win every single time."
"The product is excellent and works running multiple instruments without issue. There is no set up required, the instruments (QDA, ELSD and CAD) call for nitrogen and the generator supplies it as needed. I am extremely happy with the unit and the initial pre setup, installation and aftercare has been fantastic. Could not recommend the unit and peak more."
PEAK's ROI calculator is an easy-to-use online tool that will quickly help you see when you can expect to make a return on your investment on your gas generator. . By answering a few simple questions, we will calculate how many months it will take to make a return.
With over 20 years' worth of experience in developing gas generator technology alongside leading instrument manufacturers, we offer reliable laboratory gas solutions to meet your specific needs.
