Application types LC-MS

Part number: 10-6022

Status Discontinued i

Gas types Nitrogen

Integrated compressor Yes

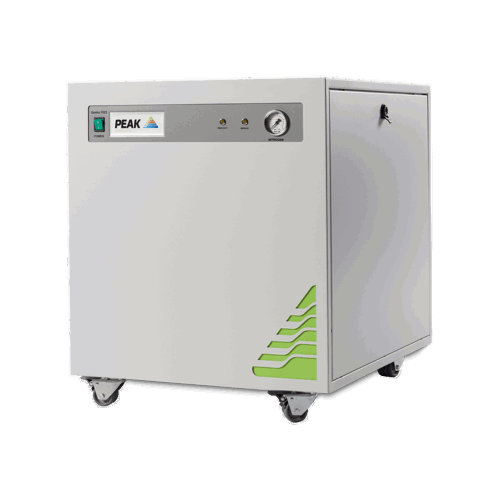

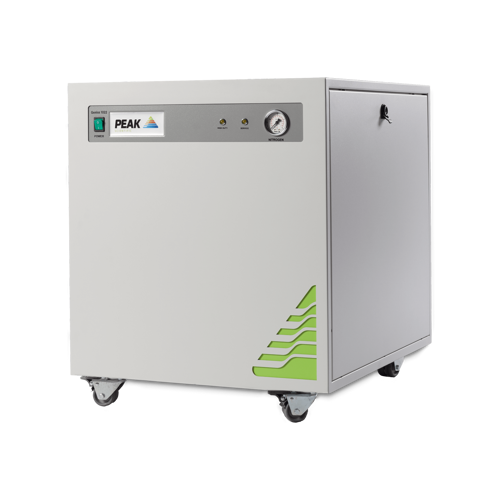

Genius 1022 Nitrogen Generator

Designed for Thermo Fisher Scientific LC-MS/MS applications, Genius 1022 provides a compact single source gas solution for the Q-Exactive series of LC-MS/MS instruments, delivering 32 Litres per minute of laboratory-grade nitrogen at 116psi Genius 1022 is built around the trusted and proven technology of Peak Scientific’s Genius series of generators.



Designed mainly for LC-MS/MS applications, these are self-contained systems featuring integrated compressors, delivering laboratory-grade nitrogen at various pressures and flow rates required by numerous instruments.

Read more
View active replacement

Features

  • Delivers up to 32L/min of nitrogen at 116psi
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required Highly economical source of nitrogen gas with low lifetime running costs
  • High-specification latest generation compressors located in insulated chamber, reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 116psi/8bar

Site & installation

Gas Outlets Fitting: 1x 1/4” BSPP

Start Up Time: 30 mins

Power Consumption: Up to 1680 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 7 A

Heat Output: 5729 BTU

Max Operating Temp: 35°C / 95°F

Particles: <0.01µm

Phthalates: None

Suspended Liquids: None

Accreditations: CSA, FCC, CE

Dimensions & weight

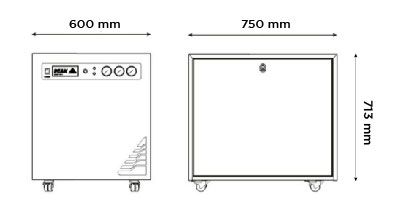

Genius 1024 Dimensions

Size (HxWxD) mm: 713 x 600 x 750 mm

Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches

Generator Weight: 95kg / 209lbs
