Application Types LC-MS

Part number: 10-6320

Status Discontinued i

Integrated compressor Yes

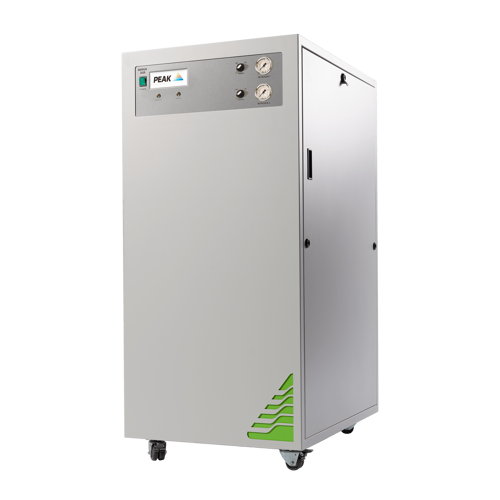

Genius 3020 Nitrogen Generator

Combining the capacity of two separate Genius nitrogen generator systems into one fully integrated system in the same compact footprint, the Genius 3020 is a convenient and safe on-demand gas solution with dual output providing two independently controlled gas sources with the ability to supply two individual LC-MS instruments.

View active replacement Call (800) 767-6532

Features

  • Combines two Genius units into one with the same quality output
  • Each gas supply is controlled manually and is independent of the other
  • Higher flow rate 30 series generator designed for hungrier LC-MS applications
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 100psi/6.9bar


Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Gas Outlets Fitting: 2x 1/4" BSPP

Start Up Time: 30 mins

Power Consumption: up to 2,760 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 12 A

Heat output: 9412 BTU

Max Operating Temp: 35°C / 95°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CSA, CE

Dimensions & weight

Genius Nitrogen Generator 3010,13,20,22 Dimensions

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 189kg / 415.8lbs
