Application Types LC-MS

Part number: 3304886

Status Available i

Integrated compressor No

Collision Gas Add-On

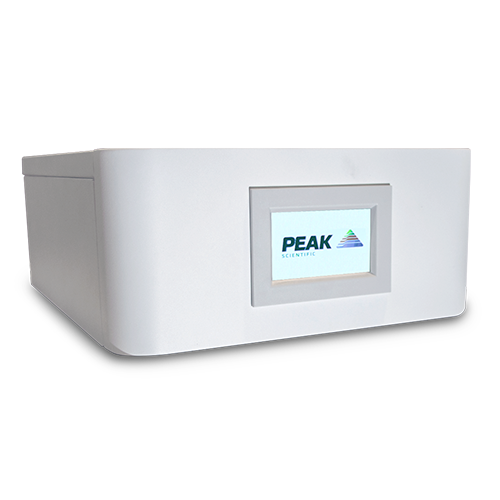

Name: Collision Gas Add-On
Brand: Peak Scientific
SKU: 3304886

Designed to work exclusively with Genius XE 35 and Genius XE 70, our Collision Gas Add-On supplies Ultra High Purity Nitrogen to the collision cell at a flow of up to 200cc/min.

With a set purity of 99.999%, the Collision Gas Add-On produces a high quality flow with no reduction to the output of the Genius XE generator. The Collision Gas Add-On allows labs to draw nitrogen from their Genius XE 35 or Genius XE 70 which removes the need for gas cylinders for UHP nitrogen.

Request a quote

Features

Can be used to supply Ultra High Purity Nitrogen for the collision cell - 99.999% nitrogen at 200cc/min*

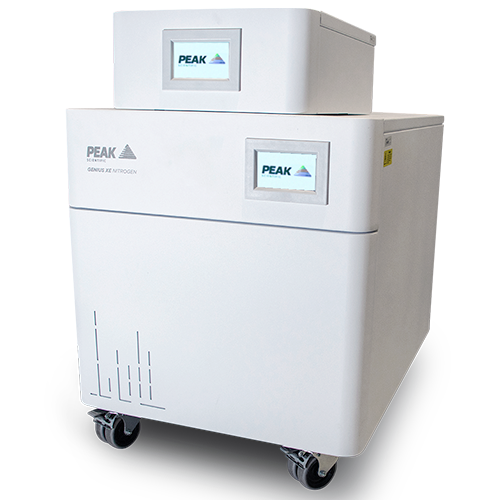

Designed to be used alongside a Genius XE 35 or XE 70, creating a dual purity system

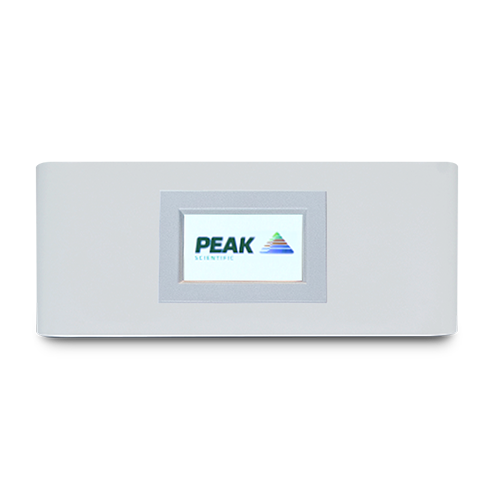

HMI Screen – monitor the performance of the Collision Gas Add-On
Maintenance interval every year, down time minimized as service can be performed at same time as Genius XE
No risk of running out of gas in the middle of analysis
2 year comprehensive manufacturer’s warranty

*Nitrogen generator providing main gas source to an instrument. (Genius XE 35 or XE 70 systems)

Gas

Gas Type: Nitrogen

Max Gas Flow: 200cc/min

Max Output Pressure: 80psi/5.5bar

Max Purity: 99.999%

Site & Installation

Gas Outlets Fitting: 1 x 1/4” BSPP

Min Air Inlet Flow: 4 L/min

Power Consumption: 20W @ 100VAC / 48W @ 240VAC

Voltage: 100v - 240v

Frequency: 50/60 Hz

Current: 0.2A

Max Operating Temp: 35°C / 95°F

Particles: <0.01µm

Phthalates: NONE

Noise Level: Silent in operation

Dimensions & weight

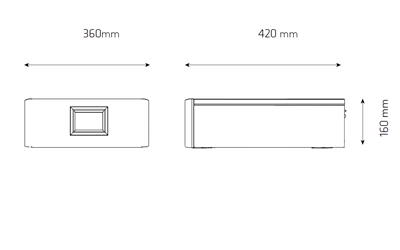

Size (HxWxD) mm: 165 x 360 x 425 mm

Size (HxWxD) Inches: 6.5 x 14.2 x 16.7 inches

Generator Weight: 14kg / 30.8lbs

Service Requirements

Maintenance required annually

General

NOTE – These performance characteristics are valid only when paired with an approved Genius XE 35 and XE 70 systems
