Application Types GC & GC-MS, ICP-MS

Part number: 63-0200

Status Available i

Integrated compressor No

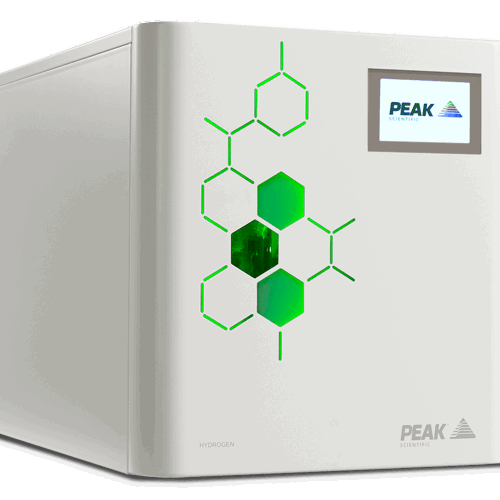

Precision Hydrogen 200 H2 Generator

The Precision Hydrogen generators are designed to provide the gas needed for detectors requiring hydrogen on demand for fuel gas, such as FID. One generator is capable of supplying multiple detectors, and are available in various flow rates to suit individual customer needs.

These generators utilize a Proton Exchange Membrane (PEM) to create the hydrogen gas from deionized water and a desiccant filtration stage is used to dry the gas. These generators utilize a Proton Exchange Membrane to create the hydrogen gas from deionized water and a desiccant filtration stage is used to dry the gas. The Precision Hydrogen generators are also suitable for providing collision gas for ICP-MS.

Precision Hydrogen gas generators come with various safety features as standard, giving you complete peace of mind in the laboratory and are a far safer, dependable and convenient alternative to cylinders.

Read more
Request a quote Call (800) 767-6532

Features

  • 99.9995% purity
  • Suitable for GC detector gas
  • Creates hydrogen on demand, minimal storage of hydrogen in the system
  • Low maintenance and minimal running costs over product lifetime
  • Internal leak detection with automatic shutdown
  • Automatic loading pump as standard
  • Simple maintenance, limited to replacing de-ionizer cartridge and silica gel

Gas

Gas Type: Hydrogen

Min Gas Flow: 0cc/min

Max Gas Flow: 200cc/min

Hydrocarbon Content: Hydrocabon free

Max Output Pressure: 100psi/6.9bar

Site & Installation

Gas Outlets Fitting: 1 x 1/8” Swagelok compression fitting

Water Purity Requirements: ASTM Type II (<1.0 uS / > 1MΩ)

Water Consumption: Up to 0.24 L/Day

Start Up Time: 180 mins

Power Consumption: 367-422 Watts

Voltage: 100-230 V

Frequency: 50/60 Hz

Current: 6 Amps

Heat output: 1000

Max Operating Temp: 35°C / 95°F

Accreditations: CSA, CE, FCC

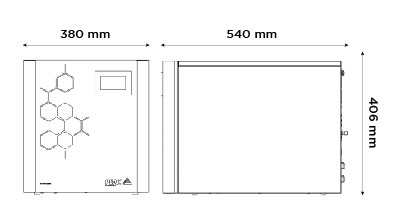

Dimensions & weight

Precision Hydrogen 1.2

Size (HxWxD) mm: 406 x 380 x 540 mm

Size (HxWxD) Inches: 16 x 15 x 21.3 inches

Generator Weight: 31kg / 68.2lbs

Service Requirements

De-ionizer cartridge replacement every 12 months

Periodic desiccant replacement as indicated on screen
