Genius 1024 LC-MS nitrogen generator
Designed exclusively for SCIEX applications, the Genius 1024 provides nitrogen and dry air to supply curtain, source and exhaust gas for SCIEX LC-MS/MS instruments.
Applications: LC-MS

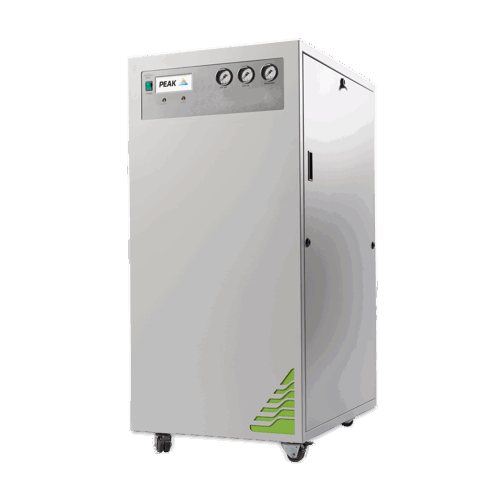

Genius 3031 Nitrogen and dry air gas generator
The Genius 3031 has been engineered with an increased flow rate specifically for Sciex. This greater flow rate means this generator is ideal for supplying curtain (nitrogen), source (dry air) and exhaust (dry air) gas to the Sciex 6500 LC-MS.
Features
- Higher flow rate 30 series generators for higher gas demand LC-MS applications such as the 6500 & X500R
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 18L/min
Max Output Pressure: 85psi/5.9bar
Gas Type: Air
Max Gas Flow: 26L/min
Max Output Pressure: 110psi/7.6bar
Gas Type: Air
Max Gas Flow: 25L/min
Max Output Pressure: 70psi/4.8bar
Site & Installation
Gas Outlets Fitting: 3x 1/4" BSPP
Start Up Time: 1 hour
Power Consumption: 2760 VA
Voltage: 230 ± 10% V
Frequency: 50 / 60 Hz
Current: 12 A
Heat output: 9412
Max Operating Temp: 35°C / 95°F
Particles: <0.01 μm
Phthalates: none
Suspended Liquids: none
Accreditations: CE
Dimensions & weight
Size (HxWxD) mm: 1322 x 600 x 850 mm
Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
Generator Weight: 186kg / 409.2lbs
Need help finding a solution?
With over 20 years' worth of experience in developing gas generator technology alongside leading instrument manufacturers, we offer reliable laboratory gas solutions to meet your specific needs.
