Application types TOC, GC & GC-MS, FT-IR

Part number: 65-0555 (230V)
65-1555 (110V)

Status Available i

Gas types Air

Integrated compressor Yes

Precision Air Compressor

The Precision Air Compressor is designed and engineered specifically to provide a dedicated, fully integrated compressed air source for Precision Nitrogen and Precision Zero Air gas generators. Housed within the same compact, stackable form factor as the generators, the Precision Air Compressor module can be added to any Precision stack - typically as the base unit - to give you a complete self-contained GC gas solution, even where no house supply is available.

Thanks to a unique duplex compressor mounting system, the Precision Air Compressor also benefits from low noise and vibration making it relatively quiet in operation within a typical laboratory.

Read more
Request a quote

Features

  • Compressed air supply for Precision Nitrogen and Zero Air generators
  • Single unit can supply both the Precision Nitrogen and Zero Air generators in a stack
  • Duplex compressor mounting system to dampen noise and vibration
  • Service & repair status indicators
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Air

Max Gas Flow: VariousL/min

Max Output Pressure: 145psi/10bar

Site & installation

Gas Outlets Fitting: 1 x 1/4" BSPP

Power Consumption: 510 / 1150 W

Voltage: 110 / 230 V

Frequency: 50 / 60 Hz

Current: 10 A (110V) / 2.45 A (230V)

Heat Output: 1740 - 3922 (BTU)

Max Operating Temp: 35°C / 95°F

Accreditations: CSA, CE

Dimensions & weight

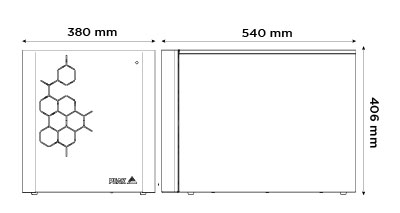

Precision Air Compressor Dimensions

Size (HxWxD) mm: 406 x 380 x 540 mm

Size (HxWxD) Inches: 16 x 15 x 21.3 inches

Generator Weight: 42kg / 92.4lbs

Service requirements

Annual compressor maintenance and replacement of filters
