Part number: 43-1010 (230V) - UK
43-1020 (230V) - EU
43-1030 (110V) - US

Status Available i

Integrated compressor No

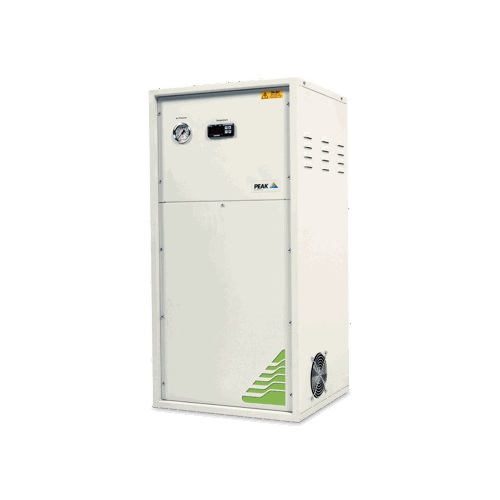

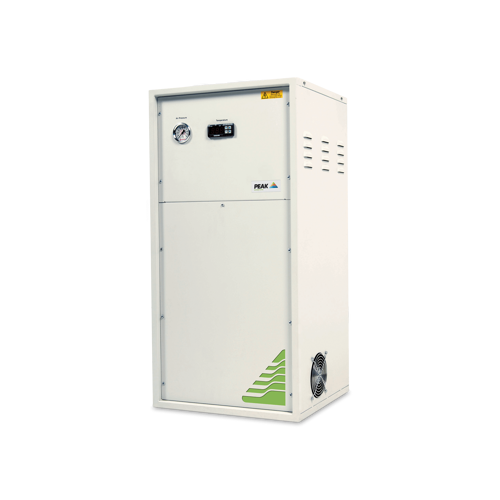

CG15L Zero Air Generator

Many laboratory applications, such as air emission applications, require calibration gas. To meet these requirements, Peak Scientific have produced the CG15L which generates zero air by removing carbon dioxide, methane and moisture from the air for applications requiring a higher performance than zero air models.

Request a quote Call (800) 767-6532

Features

  • Produces clean, dry laboratory grade air, ensures optimum supply for gas generators and instruments
  • Continuous supply of calibration gas
  • Meets requirements of Federal Register Specification 40CFR 86.114-79
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Completely silent in operation
  • Can be supported by Precision Air Compressor
  • Minimal set-up required 12 month comprehensive on-site warranty

Gas

Gas Type: Air

Max Gas Flow: 15L/min

Max Purity: <0.1ppm

Site & Installation

Gas Outlets Fitting: 1x 1/4” BSP Female

Min Inlet Pressure: 100psi/6.9bar

Max Inlet Pressure: 125psi/8.6bar

Start Up Time: 30 mins

Power Consumption: 1100/540 W

Voltage: 120 / 220 V ±10%

Frequency: 50 / 60 Hz

Current: 2.6 / 5.2 A

Accreditations: CE

Dimensions & weight

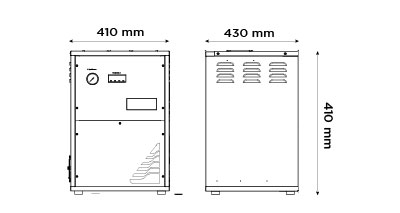

CG15L Dimensions 01

Size (HxWxD) mm: 410 x 410 x 430 mm

Size (HxWxD) Inches: 16.1 x 16.1 x 16.9 inches

Generator Weight: 58kg / 127.6lbs

Service Requirements

Annual replacement of particulate filters
