Application Types CAD & ELSD

Part number: 85-0555 (230v)
85-1555 (110v)

Status Discontinued i

Integrated compressor Yes

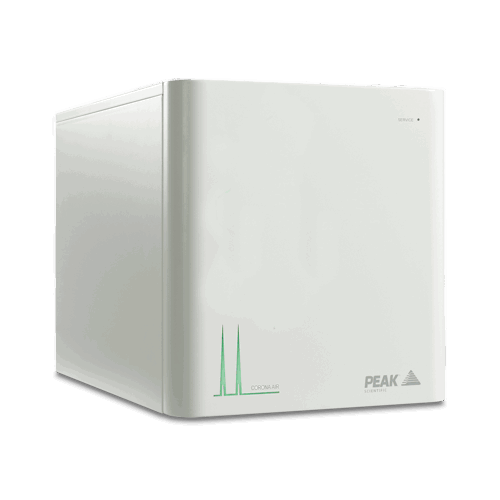

Corona Air Compressor

The Corona Air Compressor has been engineered to stack neatly with the Corona 1010 Nitrogen generator providing compressed air for laboratories without an external source of gas. The Corona Series has been developed to meet the requirements of the Thermo Scientific Corona Veo Charged Aerosol Detector.

Features

  • Stackable with Corona 1010 Nitrogen Provides air for Corona system for labs without an external supply
  • Gas is supplied on demand so generator works to your schedule 12 month comprehensive on-site warranty

Gas

Gas Type: Air

Max Gas Flow: 30L/min

Max Output Pressure: 110psi/7.6bar

Site & Installation

Min Inlet Pressure: 0

Max Inlet Pressure: 110psi/7.6bar

Power Consumption: 572 VA / 736 VA

Voltage: 110 / 230 V

Frequency: 50 / 60 Hz

Current: 5.2 A / 3.2 A

Heat output: 1950 VA / 2510 VA

Max Operating Temp: 35°C / 95°F

Particles: <0.1μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

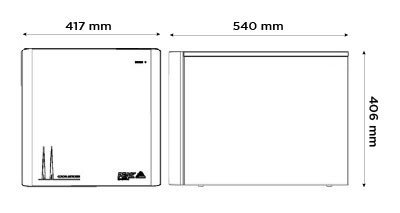

Corona Air Compressor Dimensions

Size (HxWxD) mm: 406 x 417 x 540 mm

Size (HxWxD) Inches: 16 x 16.4 x 21.3 inches

Generator Weight: 42kg / 92.4lbs
