Part number: 3304934 (120V)
3304550 (220-240V)

Status Available i

Integrated compressor Yes

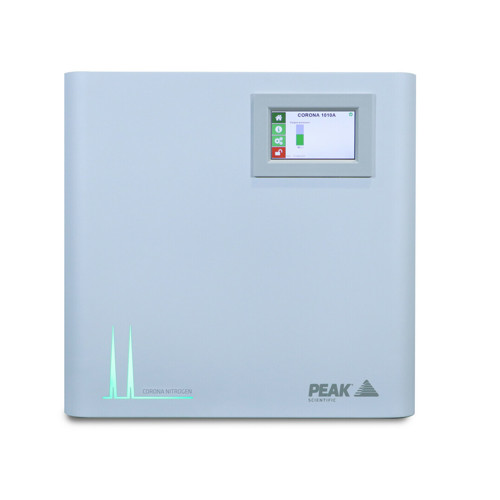

Corona Nitrogen 1010A

PEAK’s Corona 1010A has been developed to meet the demands of labs requiring high purity nitrogen for their applications.

Suitable, primarily, for Charged Aerosol Detectors, the Corona 1010A generator delivers a high-purity, filtered nitrogen supply for applications requiring flows of up to 5l/min at 80psi. With a space-saving design and built-in air compressor, the Corona 1010A can fit seamlessly into any laboratory.

Read more
Request a quote

Features

  • Suitable for applications requiring high purity nitrogen
  • Full colour, touch-screen user interface for ease of operation
  • Built-in air compressor to maximize space in lab
  • Dedicated solution for ThermoFisher Scientific’s Corona and Vanquish instruments
  • Tried and tested membrane technology delivers high purity nitrogen
  • Gas is supplied on demand so generator works to your schedule
  • The most cost-effective method of gas supply

Gas

Gas Type: Nitrogen

Max Gas Flow: 5L/min

Max Output Pressure: 80psi/5.5bar

Max Purity: >98%

Site & Installation

Gas Outlets Fitting: 1 x ¼" BSPP & 1 x 6mm push fit

Start Up Time: 5 mins

Power Consumption: up to 680VA

Voltage: 120V±5% / ~220-240V ±10%

Frequency: 120V 60Hz / ~220-240V 50/60Hz

Current: 5.2A @ 120V / 2.3-2.7A @ ~220-240V

Particles: <0.01ɥm

Phthalates: Phthalate & BHT Free

Suspended Liquids: None

Dimensions & weight

Size (HxWxD) mm: 540 x 406 x 417 mm

Size (HxWxD) Inches: 21.3 x 16 x 16.4 inches

Generator Weight: 31.5kg / 69.3lbs
