Application Types LC-MS

Part number: 10-1028

Status Available i

Gas types Nitrogen Air

Integrated compressor No

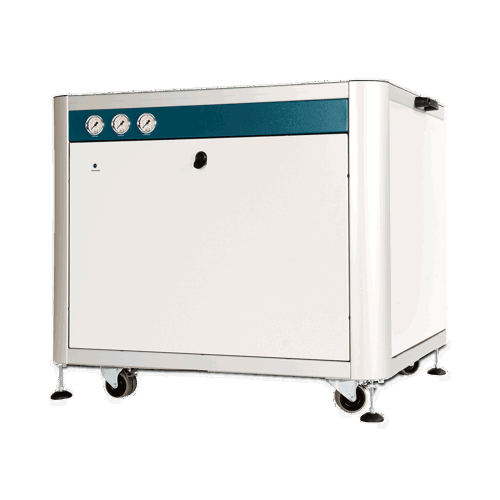

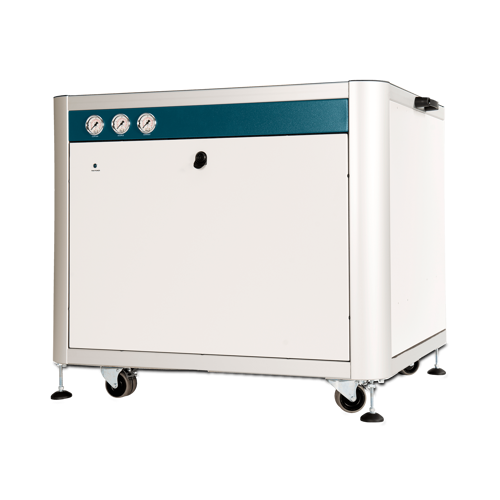

SCIEX Table 2N Hi-flow

The MS table has been designed as an SCIEX exclusive product to house the Triple Quad™, QTRAP™ or IVD MS systems. The MS table comes in a standard and premium form, the premium version including an inbuilt Infinity 1031 , or 1031 Hi-flow for MD instruments, allowing the supply of curtain, source and exhaust gases. Furthermore, the MS Table also comes supplied with an accessible sound proof enclosure for the required vacuum pumps for these applications.

Request a quote Call (800) 767-6532

Features

  • Table designed to hold SCIEX Mass Spectrometer
  • Can be supplied on its own or with an integrated nitrogen generator
  • Reduced lab footprint
  • Minimal set-up required
  • Sound proofed reducing noise of generator

Gas

Gas Type: Nitrogen

Max Gas Flow: 10L/min

Max Output Pressure: 65psi/4.5bar


Gas Type: Air

Max Gas Flow: 22L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 10L/min

Max Output Pressure: 60psi/4.1bar

Site & Installation

Gas Outlets Fitting: 3 x 1/4" BSPP

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: 115

Min Inlet Air Quality: 1.4.1

Start Up Time: 30 mins

Power Consumption: Up to 240 VA

Voltage: 110-240 V

Frequency: 50 / 60 Hz

Current: 1 A

Heat output: 818 BTU

Max Operating Temp: 30°C / 86°F

Particles: <0.1μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE, CSA, FCC

Dimensions & weight

MS Table 2 Dimensions 01

Size (HxWxD) mm: 1000 x 830 x 804 mm

Size (HxWxD) Inches: 39.4 x 32.7 x 31.7 inches

Generator Weight: 109kg / 239.8lbs
