Application types CD, Other

Part number: 10-1040

Status Obsoleted i

Gas types Nitrogen

Integrated compressor No

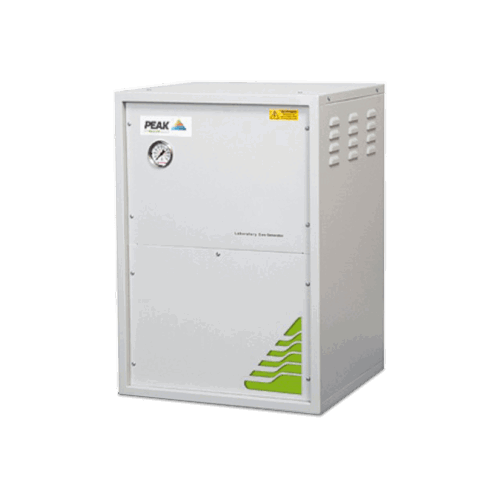

NG10L-HP Nitrogen Generator

The NG10L-HP Ultra High Purity Nitrogen Generator is designed to deliver high volume, high pressure, clean, dry, nitrogen specifically for use with multiple laboratory analytical instruments as a source of carrier gas.

View active replacement

Gas

Gas Type: Nitrogen

Max Gas Flow: 10L/min

Max Purity: 99.99%

Site & installation

Gas Outlets Fitting: 1x 1/4” BSP

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 130psi/9bar

Min Air Inlet Flow: 65

Min Inlet Air Quality: 1.4.1

Voltage: 110 / 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 1 A

Max Operating Temp: 35°C / 95°F

Particles: <0.01μm

Phthalates: none

Suspended Liquids: none

Dimensions & weight

Size (HxWxD) mm: 600 x 670 x 1380 mm

Size (HxWxD) Inches: 23.6 x 26.4 x 54.3 inches

Generator Weight: 166kg / 365.2lbs
