NG5000A ultra high purity nitrogen generator
The NG5000(A) delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of up to 5 L/min.
Applications: CAD & ELSD, ICP-MS, GC & GC-MS, CD
Application Types CD
Status Available i
Integrated compressor Yes

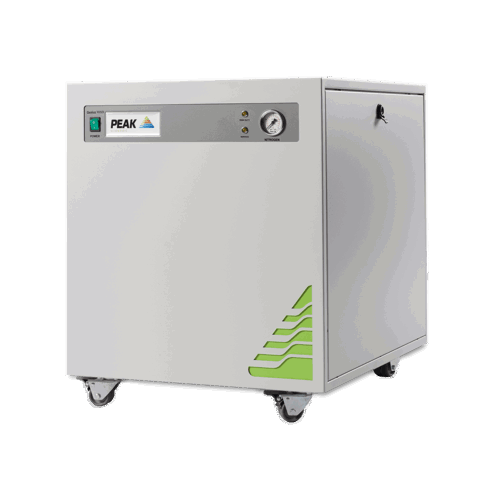

Producing up to 20 L/min of high purity nitrogen (up to 99.998%), the Genius 1053 PSA nitrogen generator is suitable for a range of Spectroscopy applications, such as Circular Dichroism. Developed using PSA (Pressure Swing Adsorption) technology, this generator produces variable purities depending on outlet flow.
Reducing the need for gas cylinders and with no requirement for an external source of house air or compressor, Genius series gas generators provide your laboratory with a standalone, uninterrupted supply of laboratory grade nitrogen.
Gas Type: Nitrogen
Max Gas Flow: 20L/min
Max Output Pressure: 100psi/6.9bar
Max Purity: up to 99.998%
Start Up Time: 30 mins
Power Consumption: 1610 VA
Voltage: 230 ± 10% V
Frequency: 50 / 60 Hz
Current: 7 A
Heat output: 5490
Max Operating Temp: 35°C / 95°F
Suspended Liquids: None
Accreditations: CSA, CE

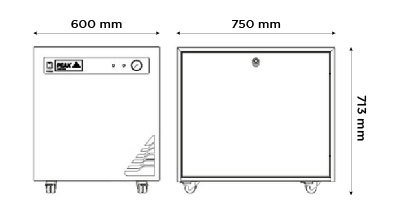

Size (HxWxD) mm: 713 x 600 x 750 mm
Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches
Generator Weight: 120kg / 264lbs
With over 20 years' worth of experience in developing gas generator technology alongside leading instrument manufacturers, we offer reliable laboratory gas solutions to meet your specific needs.
