Application types LC-MS, Sample Preparation, CAD & ELSD

Part number: 3300574 - XE 5040
3300191 - XE 5041

Status Available i

Gas types Nitrogen

Integrated compressor No

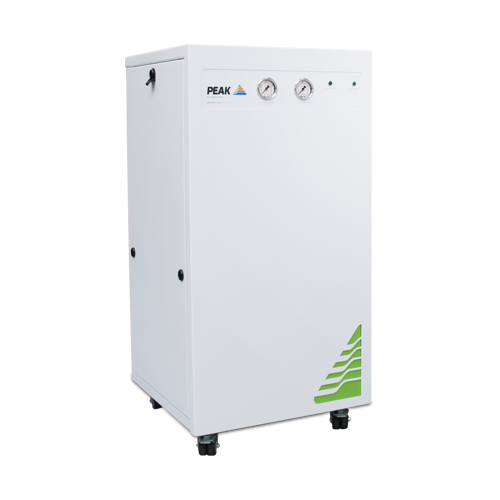

Infinity XE 503X membrane nitrogen generator

Producing between 30-390 L/min of high quality, laboratory grade nitrogen gas, the Infinity XE 503X can comfortably supply gas for multiple laboratory instruments. With variable nitrogen purity available between 95-99.5% (depending on flow rate), Infinity XE generators can be configured to suit the needs of several applications, such as LC-MS, ELSD, Sample Preparation & more.

Peak Scientific's Infinity XE series generators have been engineered to provide nitrogen gas to laboratories that already have an external source of clean, dry & oil-free air; and meets a minimum grade of ISO8573-1:2010 Class 1.4.1 - NB: Were this is not available, Peak can provide consultative assistance on what specifications of compressed air & pre-filtration are required, as well as supply these items as part of a complete Infinity XE gas generation solution.

Infinity XE series nitrogen generators are effectively silent whilst in operation and have no moving parts, so require minimal annual maintenance.

Models available with or without optional O2 analyzer & purity safeguard system.

Read more
Request a quote Call (800) 767-6532

Features

  • Flow rates from 30-390 L/min
  • Variable flow rate, with up to 135 psi outlet pressure
  • N2 purity from 95-99.5% (dependent on flow rate)
  • Tried and tested membrane technology for high quality gas
  • Small footprint using minimal laboratory space
  • Effectively silent when in operation
  • O2 analyzer option available, XE 5031 model includes PurityGuard for purity critical applications

Gas

Gas Type: Nitrogen

Min Gas Flow: 30L/min

Max Gas Flow: 390L/min

Max Output Pressure: 135psi/9.3bar

Max Purity: 99.5%

Site & installation

Min Inlet Pressure: 60psi/4.1bar

Max Inlet Pressure: 145psi/10bar

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Start Up Time: 30 mins

Voltage: 100-230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 0.4Amps at 100V / 0.174Amps at 230V

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Accreditations: CE

Dimensions & weight

Infinity XE 50X1

Size (HxWxD) mm: 995 x 500 x 500 mm

Size (HxWxD) Inches: 39.2 x 19.7 x 19.7 inches

Generator Weight: 85kg / 187lbs

Service requirements

Annual maintenance

Annual O2 sensor calibration (where applicable)
