Application Types LC-MS, Sample Preparation, CAD & ELSD

Part number: 3300573 - XE 5020
3300190 - XE 5021

Status Discontinued i

Integrated compressor No

Infinity XE 502X membrane nitrogen generator

Producing between 20-260 L/min of high quality, laboratory grade nitrogen gas, the Infinity XE 502X can comfortably supply gas for multiple laboratory instruments. With variable nitrogen purity available between 95-99.5% (depending on flow rate), Infinity XE generators can be configured to suit the needs of several applications, such as LC-MS, ELSD, Sample Preparation & more.

Peak Scientific's Infinity XE series generators have been engineered to provide nitrogen gas to laboratories that already have an external source of clean, dry & oil-free air; and meets a minimum grade of ISO8573-1:2010 Class 1.4.1 - NB: Were this is not available, Peak can provide consultative assistance on what specifications of compressed air & pre-filtration are required, as well as supply these items as part of a complete Infinity XE gas generation solution.

Infinity XE series nitrogen generators are effectively silent whilst in operation and have no moving parts, so require minimal annual maintenance.

Models available with or without optional O2 analyzer & purity safeguard system.

Read more
View active replacement

Features

  • Flow rates from 20-260 L/min
  • Variable flow rate, with up to 135 psi outlet pressure
  • N2 purity from 95-99.5% (dependent on flow rate)
  • Tried and tested membrane technology for high quality gas
  • Small footprint using minimal laboratory space
  • Effectively silent when in operation
  • O2 analyzer option available, XE 5021 model includes PurityGuard for purity critical applications

Gas

Gas Type: Nitrogen

Min Gas Flow: 20L/min

Max Gas Flow: 260 *L/min

Max Output Pressure: 135psi/9.3bar

Max Purity: 99.5% *

Site & Installation

Min Inlet Pressure: 60psi/4.1bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: Dependent on required output flow rate and purity

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Start Up Time: 30 mins

Power Consumption: 40 Watts

Voltage: 100-230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 0.4A @ 100V / 0.174A @ 230V

Particles: <0.01µm

Accreditations: CE, FCC

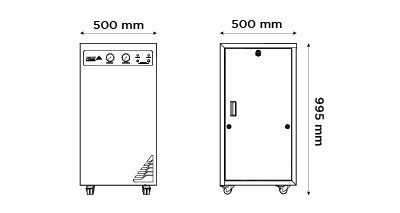

Dimensions & weight

Infinity XE 50X1

Size (HxWxD) mm: 995 x 500 x 500 mm

Size (HxWxD) Inches: 39.2 x 19.7 x 19.7 inches

Generator Weight: 80kg / 176lbs

Service Requirements

Annual maintenance

Annual O2 sensor calibration (where applicable)
