Application Types LC-MS

Part number: 10-2281

Status Discontinued i

Integrated compressor No

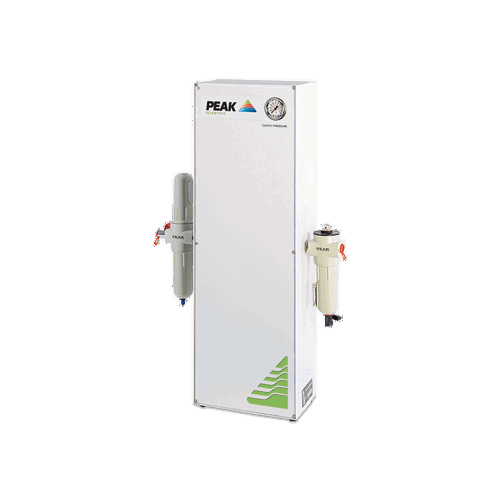

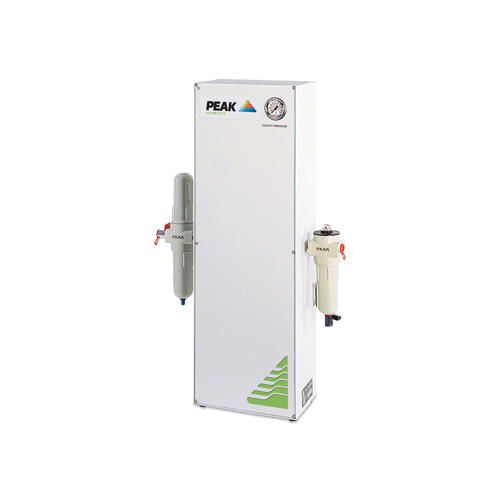

Infinity NM45L Nitrogen Generator

The Infinity NM45L compressor-less nitrogen generator has been engineered to cater for the requirements of LC-MS, sample evaporators, and NMR applications when connected to an external source of air.

Call (800) 767-6532

Features

  • Delivers nitrogen at up to 45 L/min
  • This generator can supply multiple LC-MS instruments 24/7 operation at optimum performance if required
  • Highly economical source of nitrogen with low lifetime running costs
  • Few moving parts means little maintenance and ensures long life of the generator
  • Gas is supplied on demand so generator works to your schedule
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 45L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Start Up Time: 60 mins

Dimensions & weight

Size (HxWxD) mm: 750 x 250 x 220 mm

Size (HxWxD) Inches: 29.5 x 9.8 x 8.7 inches

Generator Weight: 20kg / 44lbs
