Application types LC-MS

Part number: 3302084

Status Available i

Gas types Nitrogen Air

Integrated compressor No

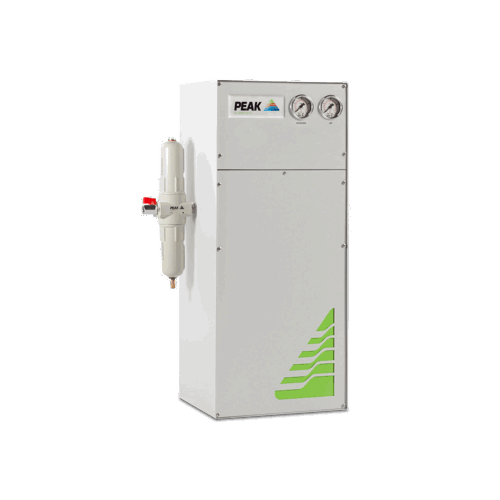

Infinity 1046 Nitrogen Generator

Generating up to 20 L/min nitrogen and 70 L/min dry air, the Infinity 1046 has been specifically designed to support the PerkinElmer QSight Triple Quad, whether single/dual source configuration. The Infinity Series are compressor-free gas generators which require a clean source of in-house air to operate effectively. With very few moving parts, these generators are effectively silent in operation and need only minimal care to ensure continued high performance and extended product life.

Request a quote

Features

  • Delivers nitrogen (drying gas) at up to 20 L/min and air (source gas) at up to 70 L/min
  • Capable of supplying both single and dual source QSight models
  • 24/7 operation at optimum performance if required
  • Highly economical source of nitrogen and air with low lifetime running costs
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 20L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 70L/min

Max Output Pressure: 110psi/7.6bar

Site & installation

Gas Outlets Fitting: 2 x 1/4" BSPP

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: 180

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Start Up Time: 60 mins

Power Consumption: 0

Voltage: n/a

Frequency: n/a

Current: n/a

Heat Output: n/a

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Phthalates: none

Contaminants: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

Infinty 1032 nitrogen generator

Size (HxWxD) mm: 730 x 422 x 250 mm

Size (HxWxD) Inches: 28.7 x 16.6 x 9.8 inches

Generator Weight: 23kg / 50.6lbs
