Application types LC-MS

Part number: 3301714

Status Available i

Gas types Nitrogen Air

Integrated compressor Yes

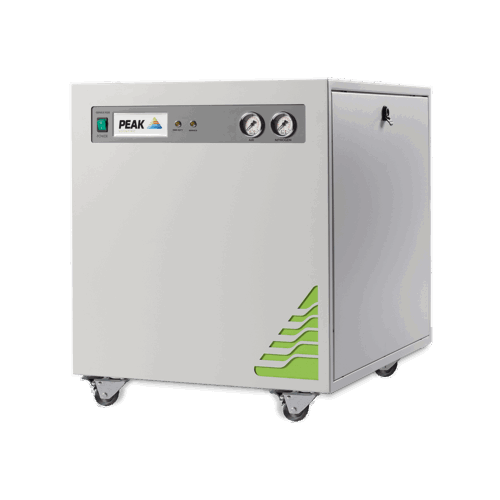

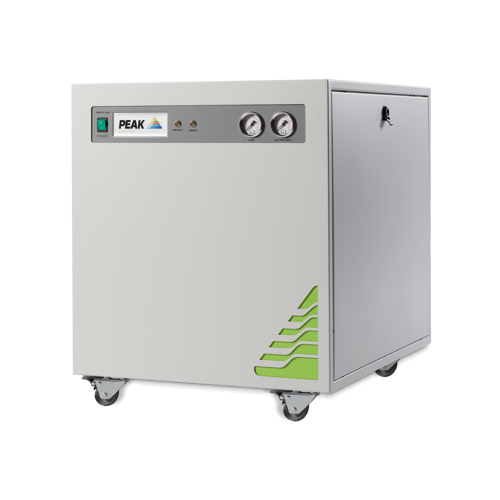

Genius 1025 Nitrogen generator

Producing a single output of LC-MS grade nitrogen (up to 15 L/min) and air (up to 35 L/min) specifically to meet the requirements of PerkinElmer’s QSight Triple Quad 110 and 210 LC-MS/MS systems, the Genius 1025 has been designed using membrane technology to produce LC-MS grade purity and an internal air dryer to produce a clean supply of dry air. The Genius 10 series models are compressor-based systems Peak manufacture utilizing membrane technology to ensure high performance and supply of analytical instrument grade nitrogen.

Request a quote

Features

  • Self-contained solution with integrated compressors, no need for an external air supply
  • Highly economical source of nitrogen/dry air with low lifetime running costs
  • Easy to use, gas at the push of a button
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 15L/min

Max Output Pressure: 80psi/5.5bar


Gas Type: Air

Max Gas Flow: 35L/min

Max Output Pressure: 110psi/7.6bar

Site & installation

Gas Outlets Fitting: 2 x 1/4" BSPP

Start Up Time: 30 minutes

Power Consumption: <1265 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 7 A

Heat Output: 3,925 BTU

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Phthalates: none

Suspended Liquids: none

Accreditations: CSA, FCC, CE

Dimensions & weight

Genius 1025 Dimensions

Size (HxWxD) mm: 713 x 600 x 750 mm

Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches

Generator Weight: 108kg / 237.6lbs
