Application Types LC-MS

Part number: 10-6330

Status Discontinued i

Integrated compressor Yes

Genius 3030 Nitrogen and dry air gas generator

The Genius 3030 has been designed to supply curtain, source & exhaust gases for selected SCIEX LC-MS systems. This generator has two outlets for each of the three gases supplied, allowing two SCIEX LC-MS systems to be comfortably run using one Genius 3030.

Call (800) 767-6532

Features

  • Curtain, source and exhaust gas all in one unit
  • Two outlets for each gas supplies two Sciex LC-MS
  • Higher flow rate 30 series generator designed for hungrier LC-MS applications
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0L/min

Max Gas Flow: 2 x 12L/min

Max Output Pressure: 80psi/5.5bar


Gas Type: Air

Max Gas Flow: 2 x 24L/min

Max Output Pressure: 80psi/5.5bar


Gas Type: Air

Min Gas Flow: 2 x 8L/min

Max Gas Flow: 2 x 8L/min

Max Output Pressure: 60psi/4.1bar

Site & Installation

Start Up Time: 30 mins

Voltage: 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 12 Amps

Accreditations: CSA, CE

Dimensions & weight

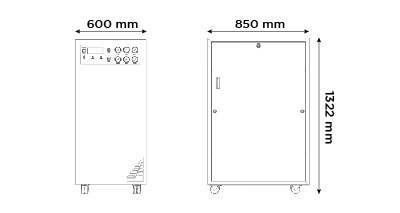

Genius Nitrogen Generator 3030, 31 Dimensions

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 196kg / 431.2lbs
