Application types LC-MS

Part number: 10-6310

Status Discontinued i

Gas types Nitrogen

Integrated compressor Yes

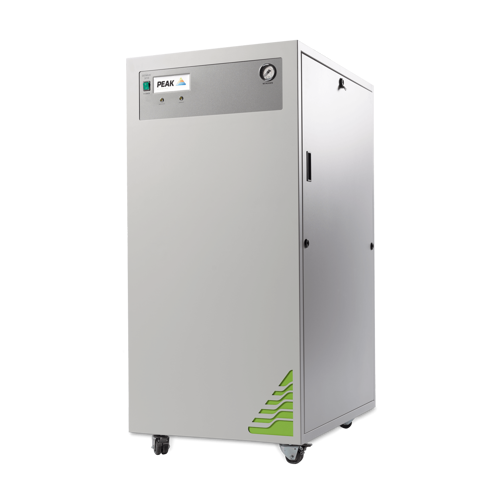

Genius 3010 Nitrogen Generator

Genius 30 series generators are engineered with an increased flow rate to assist LC-MS instruments with a requirement for a higher nitrogen flow rate or to supply nitrogen for two instruments. The Genius 3010 can deliver a single output of laboratory-grade nitrogen at flow rates of up to 64 liters per minute.

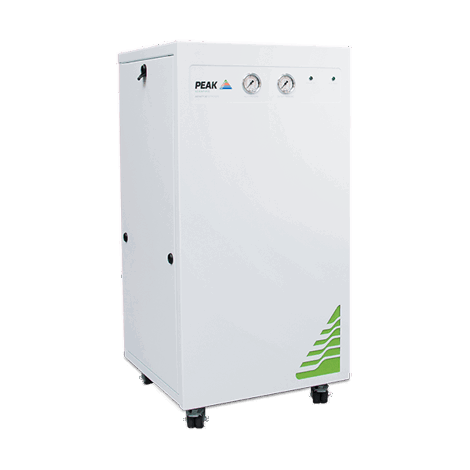

View active replacement

Features

  • Higher flow 30 Series generator designed for hungrier LC-MS applications
  • Compressor based solution, no need for an external air supply
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Gas is supplied on demand so generator works to your schedule
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 64L/min

Max Output Pressure: 100psi/6.9bar

Site & installation

Gas Outlets Fitting: 1x 1/4” BSPP

Start Up Time: 30 mins

Power Consumption: 2760 VA

Voltage: 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 12 A

Heat Output: 9412 BTU

Max Operating Temp: 35°C / 95°F

Particles: <0.1μm

Phthalates: None

Suspended Liquids: None

Accreditations: CSA, CE

Dimensions & weight

Genius Nitrogen Generator 3010,13,20,22 Dimensions

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 168kg / 369.6lbs
