Application Types LC-MS, GC & GC-MS

Part number: 10-9556

Status Available i

Integrated compressor Yes

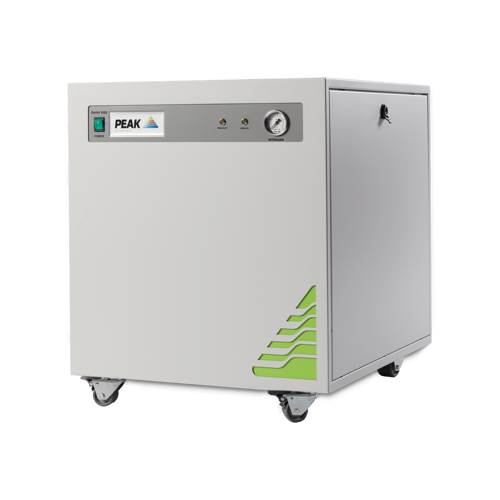

Genius 1052 PSA nitrogen gas generator

For applications requiring heating and cooling nitrogen, the Genius 1052 PSA nitrogen generator contains highly effective Pressure Swing Adsorption and Carbon Molecular Sieve technologies to deliver a clean nitrogen gas supply. Developed for GCxGC modulators, this model can be used for a wide variety of applications requiring similar nitrogen outputs.

Request a quote Call (800) 767-6532

Features

  • Dual gas output delivers heating and cooling gas
  • Innovative CMS and PSA technology ensures high performance
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 20L/min

Max Output Pressure: 30psi/2.1bar


Gas Type: Nitrogen

Max Gas Flow: 12L/min

Max Output Pressure: 20psi/1.4bar

Site & Installation

Water Consumption: TBC

Start Up Time: 30 mins

Voltage: 230 ± 10%

Frequency: 50 / 60 Hz

Current: 7

Noise Level: 54

Accreditations: CSA, CE

Dimensions & weight

Genius 1050,51,52,53,61 Dimensions 01

Size (HxWxD) mm: 713 x 600 x 750 mm

Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches

Generator Weight: 120kg / 264lbs
