Part number: 40-1020

Status Available i

Gas types Air

Integrated compressor No

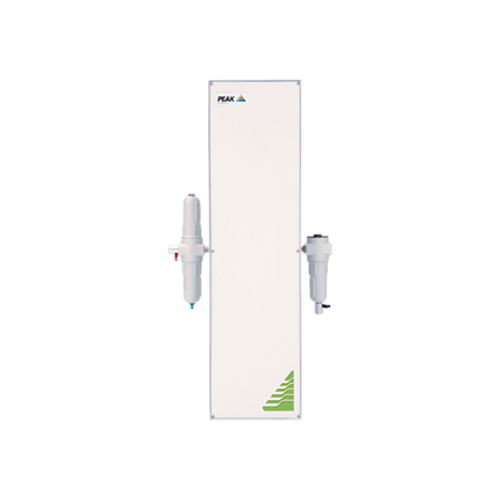

AD70L - Air Dryer

The AD70L is a useful attachment for any laboratory's external source of air, removing moisture and ensuring the delivery of dry air. Moisture content in house air can contaminate lab instrumentation, impacting on results and in some cases damaging the instrument itself. Compact in size, wall-mountable and light, the AD70L requires little space and its few moving parts mean minimal maintenance is required.

Request a quote

Features

  • Produces clean, dry air, ensures optimum supply for gas generators and instruments
  • Dryer performs 24/7 if needed
  • Dryer is wall-mountable for small labs
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Completely silent in operation
  • Minimal set-up required
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Air

Max Gas Flow: 70L/min

Site & installation

Gas Outlets Fitting: 1x 1/4” BSP Female

Min Inlet Pressure: 100psi/6.9bar

Max Inlet Pressure: 120psi/8.3bar

Start Up Time: 90 mins

Power Consumption: 8 - 19.2 W

Voltage: 100 - 240 V ± 10%

Frequency: 50 / 60 Hz

Current: 0.8 A

Noise Level: 0

Accreditations: CE

Dimensions & weight

TOC 1500 AD140L Dimensions 01

Size (HxWxD) mm: 660 x 472.4 x 160 mm

Size (HxWxD) Inches: 26 x 18.6 x 6.3 inches

Generator Weight: 18.5kg / 40.7lbs

Service requirements

Annual replacement of particulate filters
