Part number: 10-1028

Status Discontinued i

Gas types Air

Integrated compressor No

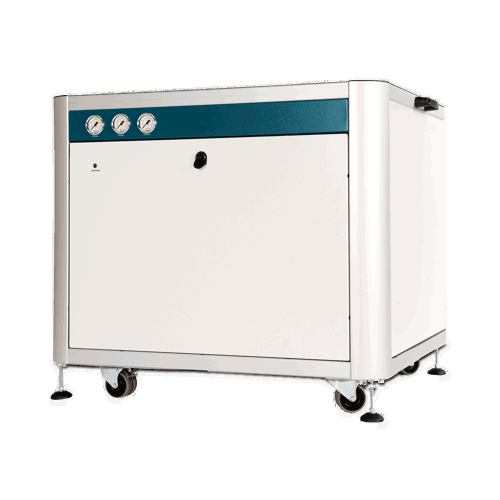

MS Table 2B Hi-Flow

The MS table has been designed as a Sciex exclusive product to house the Triple Quad™, QTRAP™ or IVD MS systems. The MS table comes in a standard and premium form, the premium version including an inbuilt Infinity 1031 allowing the supply of curtain, source and exhaust gases. Furthermore, the MS Table also functions as an accessible sound proof enclosure for the required vacuum pumps for these applications.

View active replacement

Features

  • Table designed to hold Sciex Mass Spectrometer
  • Can be supplied on its own or with an integrated Infinity 1031 compressor-less nitrogen generator
  • Reduced lab footprint
  • Minimal set-up required
  • Sound proofed, reducing noise of generator

Gas

Gas Type: Air

Site & installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Frequency: 50 / 60 Hz

Dimensions & weight

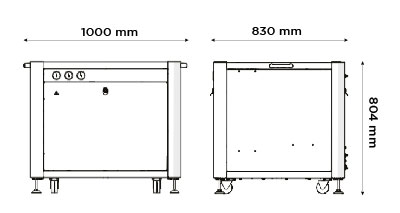

MS Table 2 Dimensions 01

Size (HxWxD) mm: 804 x 1000 x 830 mm

Size (HxWxD) Inches: 31.7 x 39.4 x 32.7 inches
