Part number: 40-1220

Status Available i

Integrated compressor No

AD302L - Air Dryer

The AD302L is a useful attachment for any laboratory's external source of air, removing moisture and ensuring the delivery of dry air. Moisture content in house air can contaminate lab instrumentation, impacting on results and in some cases damaging the instrument itself. Compact in size, wall-mountable and light, the AD302L requires little space and its few moving parts mean minimal maintenance is required.

Request a quote

Features

  • Produces clean, dry air, ensures optimum supply for gas generators and instruments
  • Dryer performs 24/7 if needed
  • Dryer is wall-mountable for small labs
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Completely silent in operation
  • Minimal set-up required
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Air

Max Gas Flow: 302L/min

Site & Installation

Gas Outlets Fitting: 1x 1/4” BSP Female

Min Inlet Pressure: 100psi/6.9bar

Max Inlet Pressure: 120psi/8.3bar

Start Up Time: 90 mins

Power Consumption: 8 - 19.2 W

Voltage: 100 - 240 V

Frequency: 50 / 60 Hz

Current: 0.8 A

Accreditations: CE

Dimensions & weight

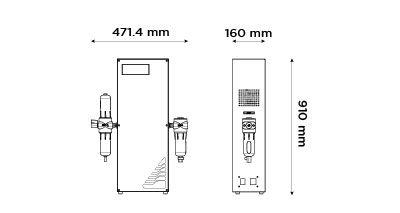

AD302L Dimensions 01

Size (HxWxD) mm: 910 x 160 x 471 mm

Size (HxWxD) Inches: 35.8 x 6.3 x 18.5 inches

Generator Weight: 20.5kg / 45.1lbs

Service Requirements

Annual replacement of particulate filters
