Author
Dr.Sc Ed Connor

Published
17th April 2015

Complex Mixture Using Hydrogen as a Carrier Gas

Abstract

The following technical brief aims to demonstrate the performance of GC-MS using hydrogen as a carrier gas. Here we compare the performance of hydrogen and helium for the analysis of a complex mixture. The results show that by using hydrogen, chromatographers can achieve superior results to helium, with faster run times and taller, sharper peaks.


Introduction

Owing to the worldwide shortage of Helium, many GC-MS users are now using hydrogen for carrier gas in their GC-MS analyses, however there are still fears about the safety of hydrogen and its reactivity with analytes. This study aims to show that hydrogen carrier gas produced by a hydrogen generator is suitable for GC-MS analyses and that use of hydrogen can give improved chromatographic results compared with helium as carrier gas.



Experimental

Reagent:
0.5 μL of a 76-compound mixture
(Restek Megamix cat. No. 31850) in DCM

MS:
Bruker SCION-SQ GC-MSD
MS source: 330 °C
Mass Range: m/z 45-500
2 min solvent delay, 120 ms scan time

GC:
Column: BP-5MS column (20m x 0.18mm with 0.18 μm film thickness)
Oven: 45 °C (1 min hold) ramped at 30 °C/min to 310 °C (5 min. hold)
Injection: Pulsed-split injection (inlet temperature 290 °C , pressure 40 psi for 0.3 min,
70:1 split)

Carrier:
Peak Precision Trace Generator
Hydrogen, 1 mL/min

Would you like more information?



Results

The results of this technical brief show that by using hydrogen as a carrier gas, chromatographers can shorten run times compared with helium without compromising peak separation (Figure 1.). The results also show that hydrogen can improve not only run time efficiency, but signal strength and resolution.



Discussion

Hydrogen produced by a hydrogen generator is a safe and suitable alternative to helium for GC-MS carrier gas. With the installation of an in-oven hydrogen leak detector, along with the fail safe mechanisms in place within the generator, lab users can work safely with hydrogen.

EPA method 8270 allows for the use of both helium and hydrogen for carrier gas and results from the analysis of the complex mixture show that hydrogen can give superior separation of analytes despite operating at higher linear velocities. The lower viscosity and resulting higher efficiency of hydrogen compared with helium allows for the use of narrower bore columns, which gives chromatographers the opportunity to further improve separation.

Complex mixture

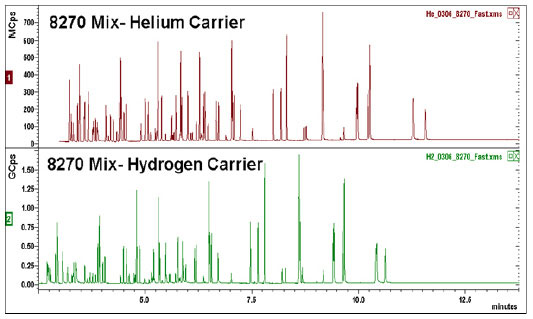

Figure 1. Results showing faster elution of compounds and greater peak height when using Hydrogen as a carrier gas.

complexmixture2

Figure 2. Shows that separation of Indeno(123-cd)pyrene and Dibenz(ah)anthracene was slightly improved by using Hydrogen despite faster elution times with Hydrogen as carrier gas.



Ed Connor

Ed Connor DR.SC. is GC-MS Application Specialist, Peak Scientific, Inchinnan Business Park, Scotland, UK . Prior to joining Peak in February 2013, Ed completed his Dr.Sc. at ETH Zurich in Switzerland using GC-MS to look at herbivore induced plant volatiles and their interaction with beneficial insects. He then joined the University of Zurich where his work focused primarily on volatile collection methods and analyses using GC-MS and GC-FID . +44 141 812 8100, econnor@peakscientific.com
