Intura N2 250 GC Gas Generator
The Intura Nitrogen has been developed to provide a constant and consistent source of nitrogen for detector and make-up gas for GC
Applications: GC & GC-MS
Application Types GC & GC-MS
Part number:
3305329-1-02 (120v)
3305329-2-02 (230v)
Status Available i
Integrated compressor Yes

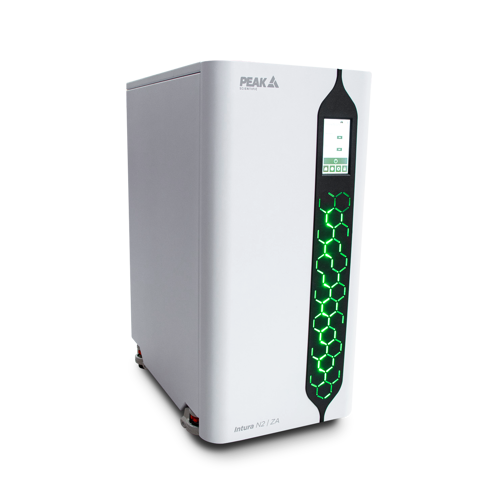

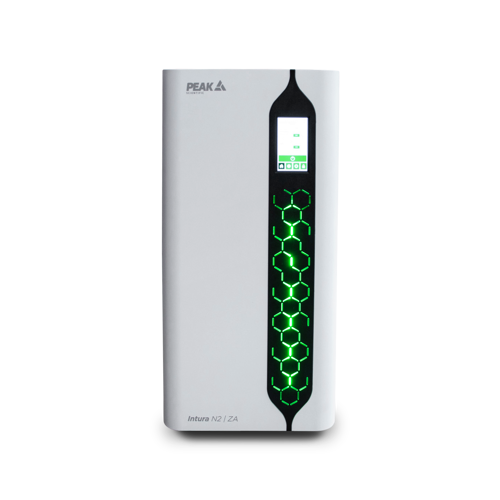

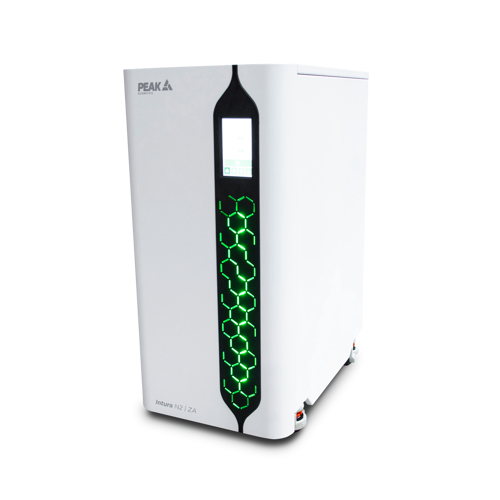

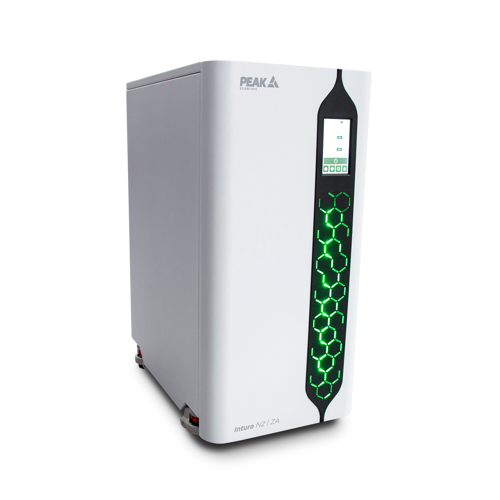

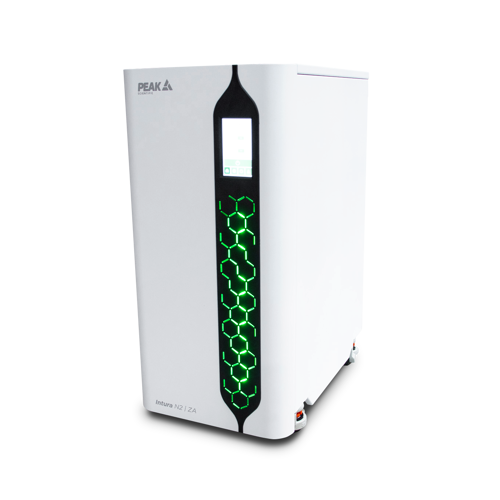

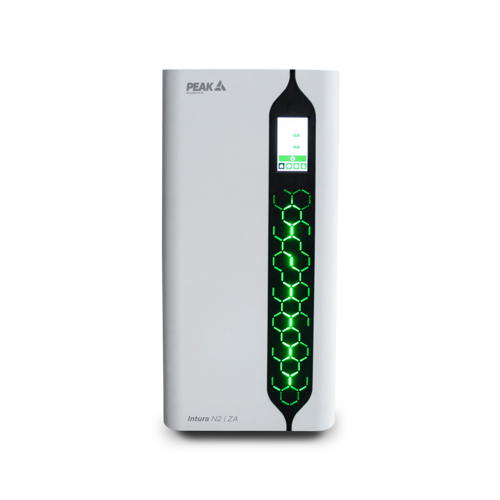

Intura N2|ZA 600 GC Gas Generator
Engineered to provide a constant and consistent source of nitrogen and zero air for carrier and detector make up gas. This 2-in-1 Nitrogen and Zero Air gas generator with an integrated air compressor can provide high-purity nitrogen and zero air to your GC at flow rates to suit your GC requirements.
PEAK’s uniquely designed CAT chamber ensures increased contact time to eliminate ambient CH4 levels to <0.05ppm in outlet air. PEAK’s Purity safeguard feature delivers only UHP gas to the application, greatly reducing the risk to components which are sensitive to contact with high concentrations of O2.
With Intura, GC users can look forward to complete peace of mind from a safe, dependable and convenient gas supply solution.
Read more
Request a quote
Extend warranty
up to 5 years!
Features
Smallest 2-in-1 Zero Air generator with Integrated air compressor
Up to 600cc/min UHP N2 and 3.5LPM Zero air
Ultra-fast start-up - High purity Nitrogen produced in under 45 mins Patented AirMax™ intake filter
Purity safeguard feature
Compact design, saving valuable lab bench space
Improved, more efficient CAT chamber
Low power consumption, reducing power draw and operational carbon footprint
Highest pressure output from compressor-based UHP N2 & ZA generator
High-quality touchscreen for operation, reminders and alerts
12-month comprehensive warranty, with the option to extend up to 5 years
Gas
Gas Type: Nitrogen
Max Gas Flow: 600cc/min
Max Output Pressure: 100psi/6.9bar
Max Purity: 99.9995
Gas Type: Air
Max Gas Flow: 3500cc/min
Max Output Pressure: 100psi/6.9bar
Site & Installation
Power Consumption: 636W
Voltage: 100 / 240V
Frequency: 50 / 60Hz
Noise Level: <60
Accreditations: CE, FCC, NRTL, IP20, ISTA
Dimensions & weight
Size (HxWxD) mm: 696 x 330 x 586 mm
Size (HxWxD) Inches: 27.4 x 13 x 23.1 inches
Generator Weight: 60kg / 132lbs
Downloads
Related Products
Need help finding a solution?
With over 20 years' worth of experience in developing gas generator technology alongside leading instrument manufacturers, we offer reliable laboratory gas solutions to meet your specific needs.
Calculate your gas needs
Peak's GC Gas calculator is an easy-to-use online tool that will quickly help you choose the right combination of generators to suit your lab’s needs. By answering a few simple questions, we will calculate the gases, flows and purities required to support your GC applications and recommend a solution that will improve your lab workflow.
